ROCKRIDER

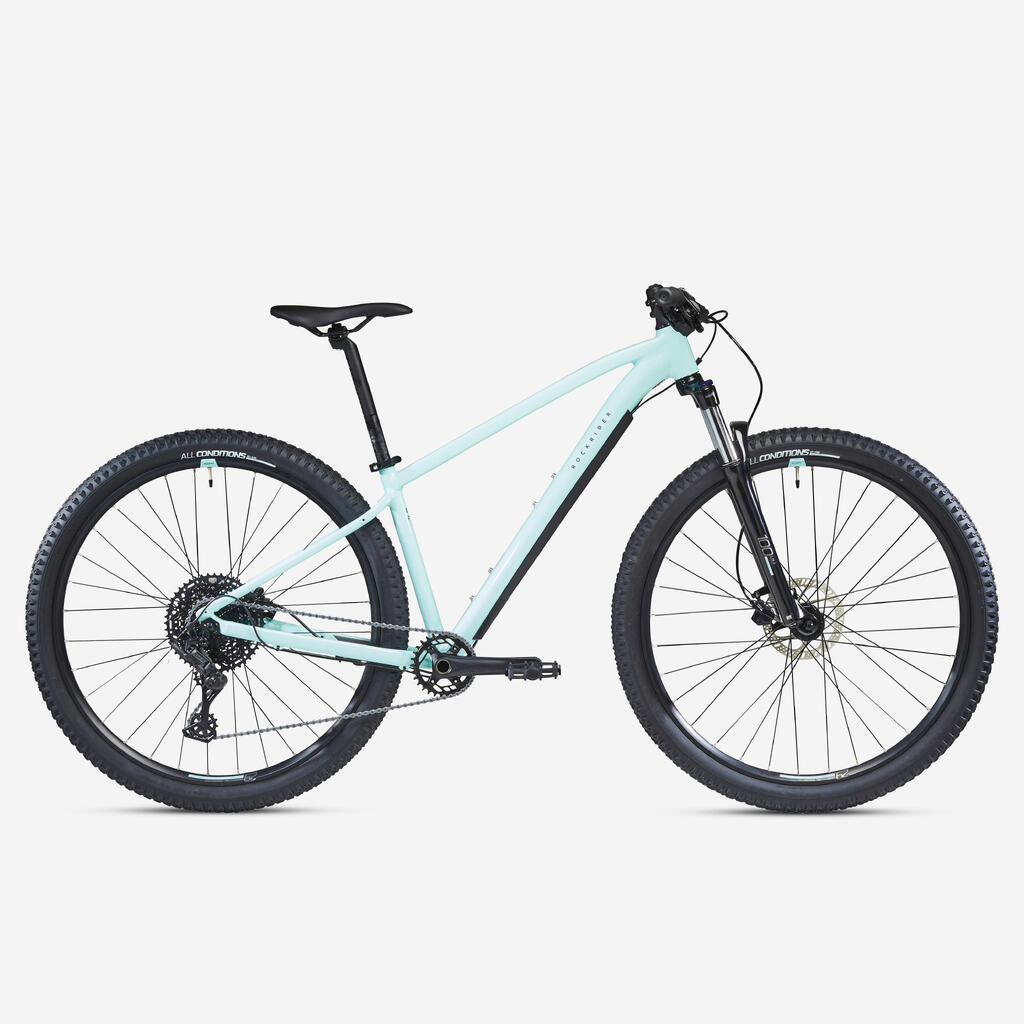

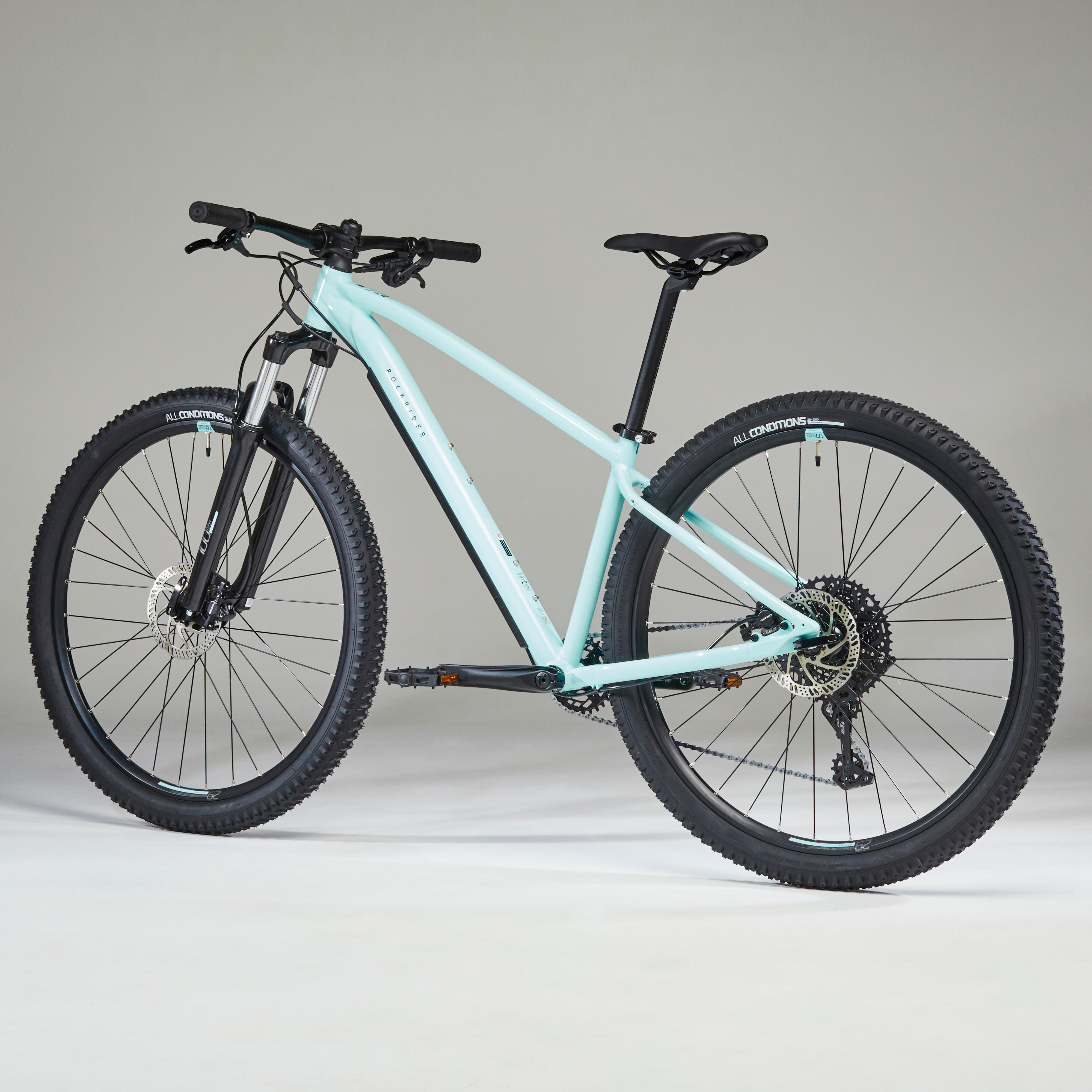

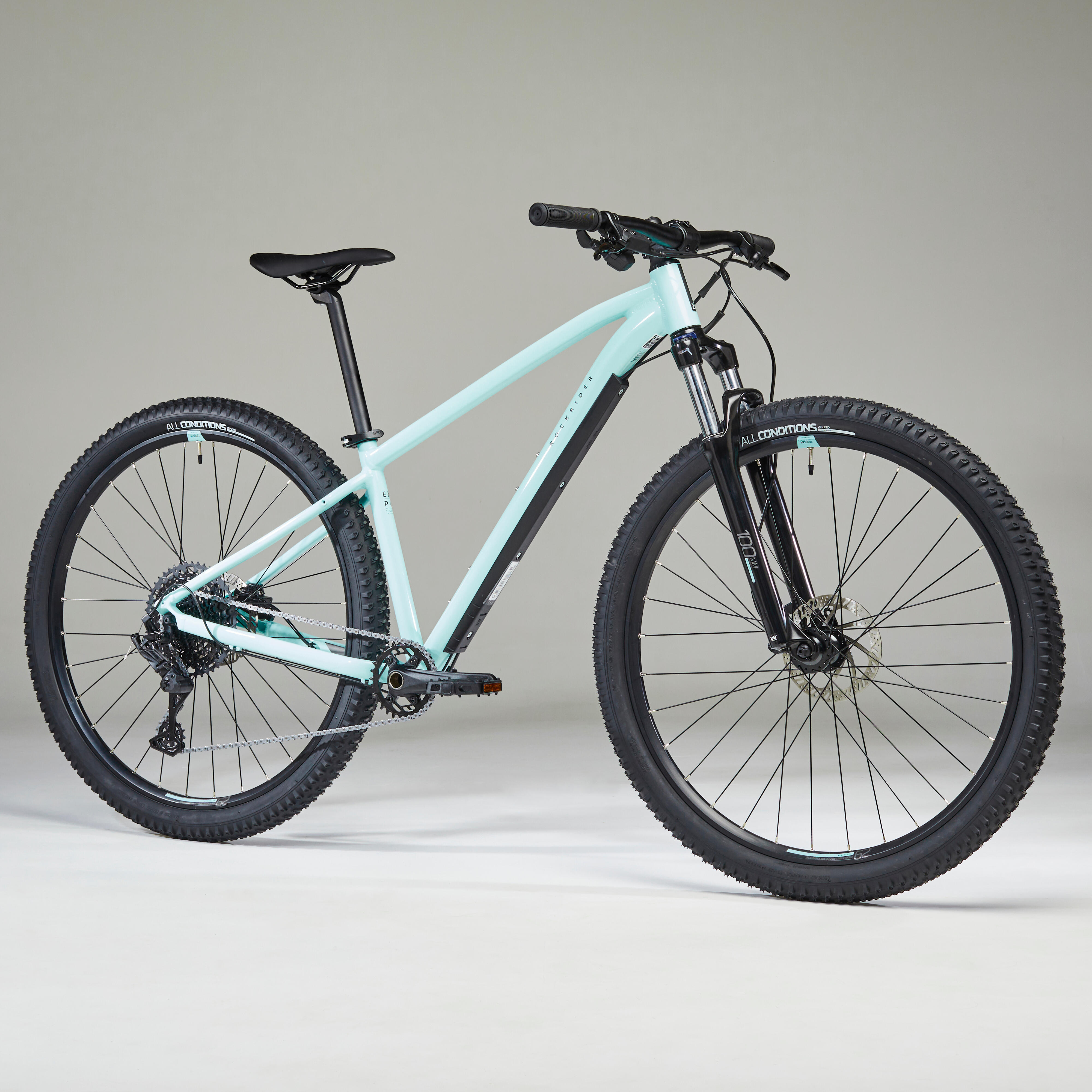

29" Touring Mountain Bike Explore 520 - Green
Designed for mountain bike rides all year round, from 2 to 3 hours long.Design suitable for the female body
Comfortable, sensitive and responsive: with the women's Explore 520's 29" wheels (27.5" in S), 100 mm hydraulic fork and hydraulic disc brakes, you can ride all the best lines!
ID 8607256
BENEFITS
Ease of use
Adapt your speed with one hand, without thinking: single chainring drive train
Lifetime warranty
ROCKRIDER offers a lifetime warranty on the frame, handlebars and stem.
Control
Hydraulic fork and brakes, wide tyres and 700 mm women's handlebar.
Efficiency
Lightweight alu frame, 29" wheels (27.5" in S), 10-speed single chainring
Ease of handling
100 mm adjustable stem & fork, shorter brake reach, & ergonomic women's saddle
Instructions
DownloadTECHNICAL INFORMATIONS
In a nutshell
Weight: 14.5 kg in size M (without pedals)
Frame material: Aluminium
Type: Hardtail
Wheel size: 29" (M / L), 27.5" (S)
Fork travel: 100 mm
Drivetrain: 1x10
Brakes: Hydraulic
Seatpost: Aluminium
Frame, stem and handlebar warranty: lifetime
Weight
S: 14.15 kg
M: 14,5 kg
L: 14.6 kg
Net weight without pedals
Frame
Composition: 6061 aluminium
135 mm x 9 mm rear axle
QR spindle
73 mm threaded bottom bracket (BSA)
Protective cover for housing
27.2 mm seat tube
Straight head tube
2 bottle cage mounts (1 on size S) / Pannier rack mounts

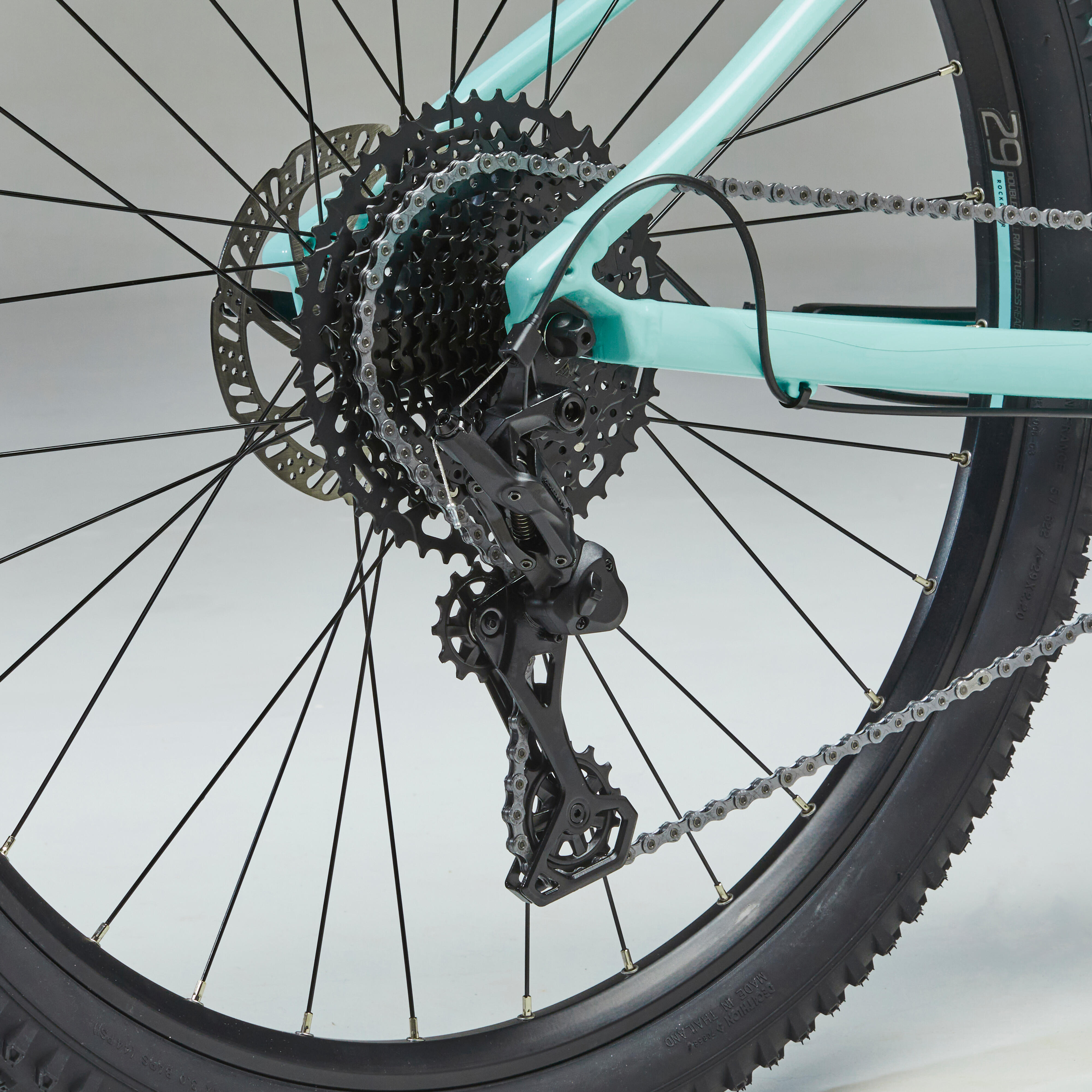

Drivetrain
30 T single chainring (compatible with 32 T)
170 mm crank
"Thru axle / external bearing" bottom bracket
Microshift AdventX
10-speed shifter and rear derailleur
11-48 cassette
KMC X10 chain

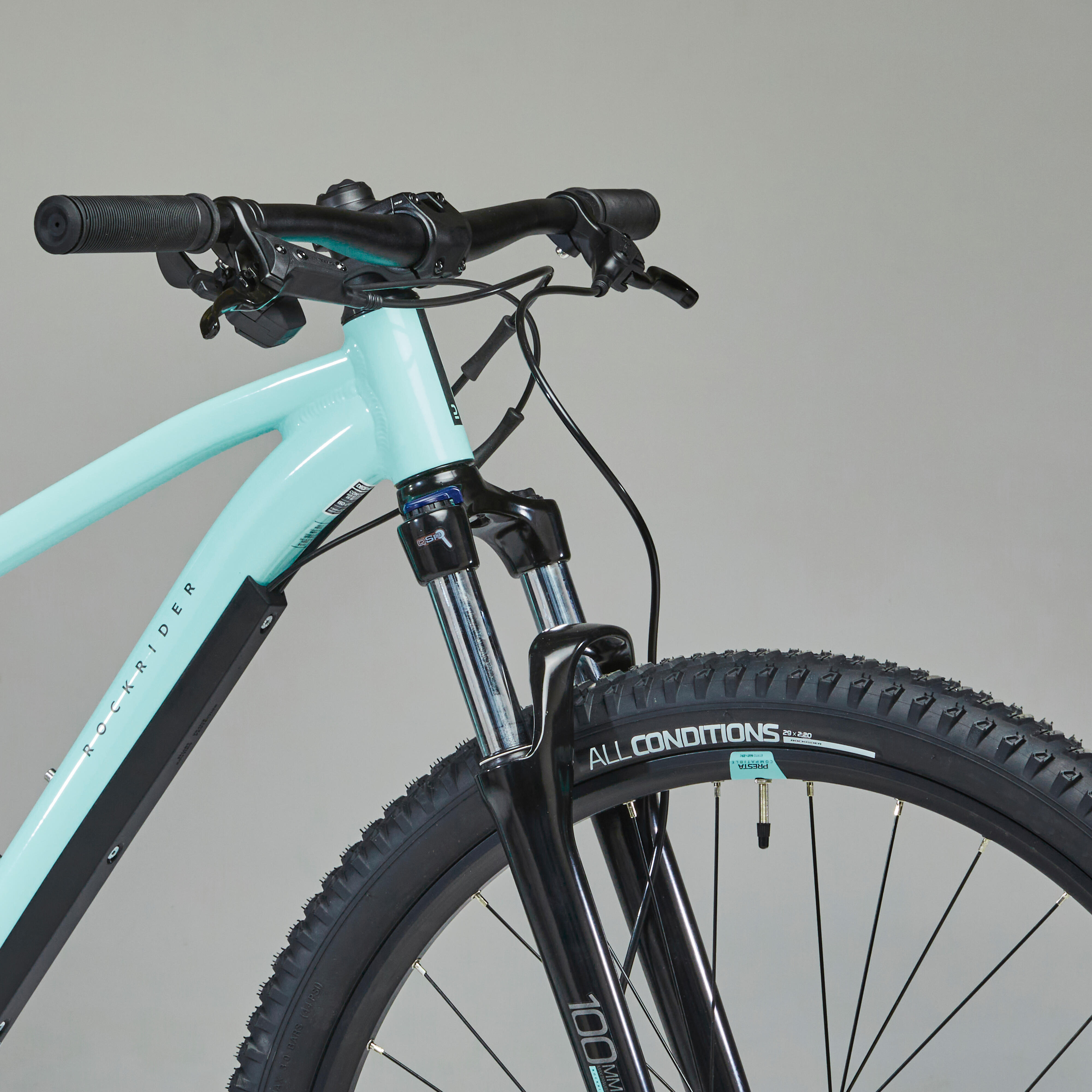

Suspension
Suntour XCM fork with alu steerer tube, adjustable from 45 kg
Coil spring with hydraulic cartridge
100 mm travel
30 mm diameter stanchion
QR axle
9 x 100 mm
Turnkey lockout on the fork
Wheels
29" (M / L), 27.5" (S)
Tubeless ready rims, Presta valve
23 mm inner width (28 mm outer)
32 spokes (M / L), 28 spokes (S)
6-bolt disc
Shimano/Sram freehub
Brakes
Hydraulic disc brakes
Tektro TK-M276
Brake levers 1 cm closer
Number of pistons: 2
Front disc: 160 mm
Rear disc: 160 mm
Adjustable reach: Yes

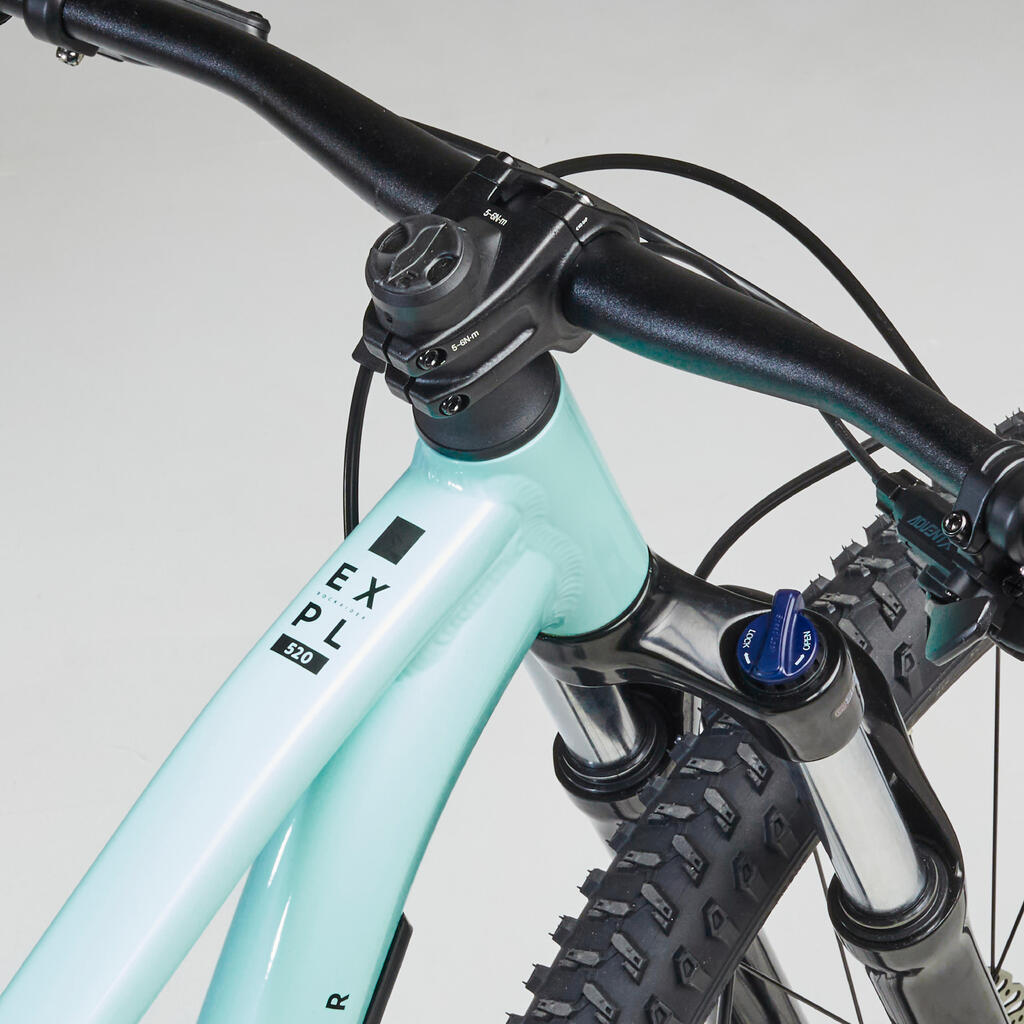

Riding position
Handlebar: Rockrider Sport
Material: Aluminium
Width: 700 mm
Stem: Rockrider
Material: aluminium
Size: 40 mm
4 adjustment increments: +0 mm, +5 mm, +20 mm, +25 mm
Compatible with Garmin, Mio or Bryton bike computer / GPS brackets
Grips: Rockrider SPORT
/ Seat post
Rockrider Ergonomic women's saddle with hollow centre
Rockrider Sport seat post
Material: Aluminium
Diameter: 27.2 mm
Length: 350 mm (S / M), 400 mm (L)
Tyre
Rockrider All Conditions
29"x2.2" (M / L), 27.5"x2.2" (S)
Carcass: 60 TPI
Pedals
Rockrider 520 Grip resin flat pedals
ACCESSORIES INCLUDED
Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals.
COMPOSITION
composition
Frame (for bike): 100.0% [EN] Aluminium
Tips for storage and maintenance
Storage tips
After washing, pass a dry cloth to remove all traces of moisture. Lubricate the drive train and store the bike in a cool, dry place away from corrosive products and salty air.
Restrictions on use
Not suitable for All Mountain, Enduro and BMX mountain biking
TESTS AND WARRANTY
Test product
Ask your local Decathlon store about testing before purchase.
Agree by
Our engineers always have real mountain bikers test all our products in real conditions. These tests round out our lab tests and let us validate all our products before they hit store shelves.
Parts guarantee
Lifetime (frame, stem, handlebars). Availability of spare parts: 2 years.
