LEVEL OF PROTECTION
This wide, shock-resistant mudguard kit stops mud getting sprayed onto the rider's lower back, chest and face.
For best results, position the rear mudguard blade as close as possible (2 to 3 cm) to the wheel.
You can't completely avoid muddy splatters when it's damp...
But for getting from A to B, we recommend using a hybrid bike mudguard kit (with longer blades that are closer to the wheels), if compatible with your bike frame and tyre width.
Bike compatibility
This kit is suitable for 26" to 29" mountain bikes, with a tyre width up to 2.8" in 27.5" and 2.6" in 29", equipped with a telescopic fork.
To ensure a good fit at the front, the internal diameter of the steerer tube must be between 18 and 34 mm.If the front blade interferes with the underside of the frame (for example in small sizes), it is possible to move the blade forward.

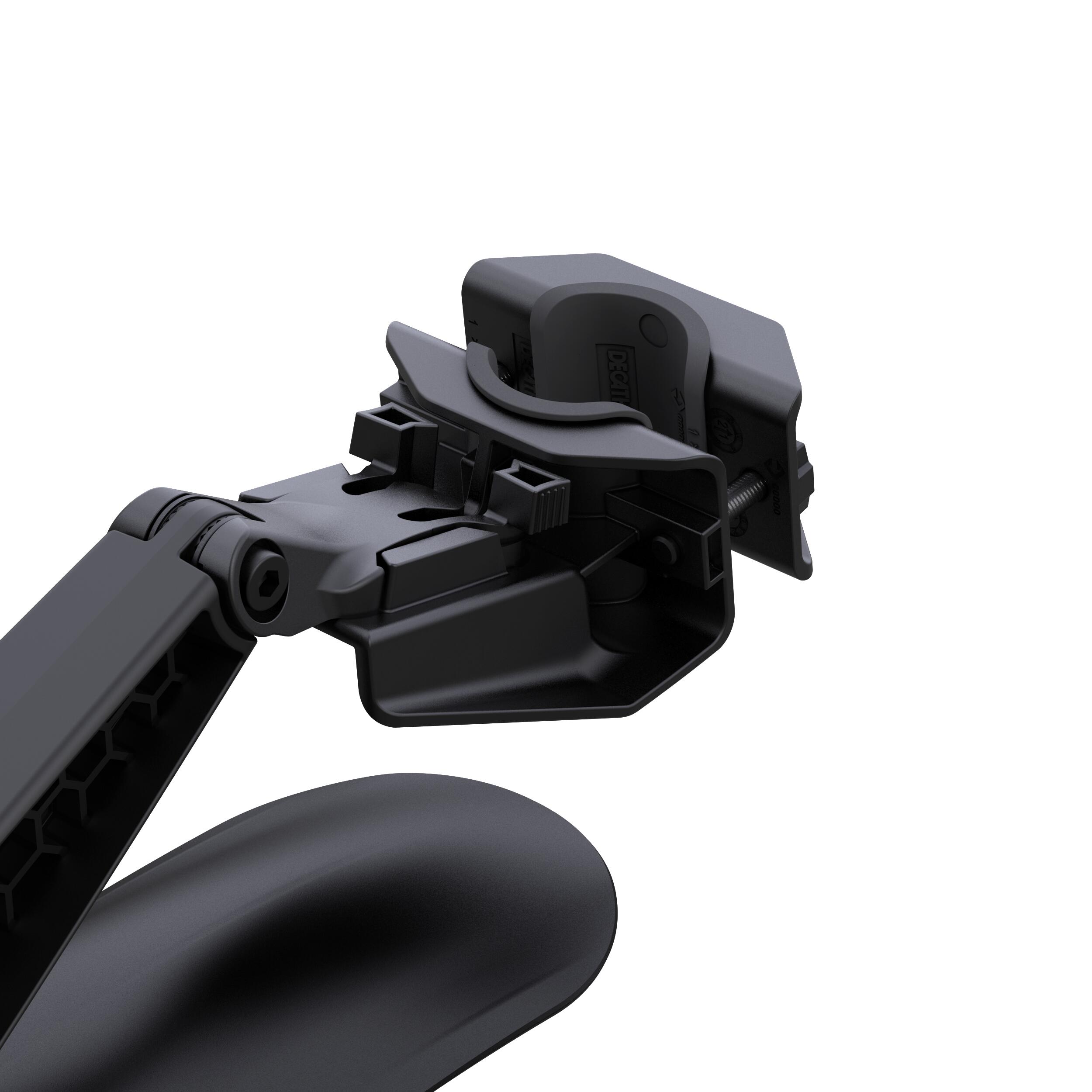

To ensure a good fit at the rear, the diameter of the seat post must be between 25.4 and 34.9 mm.

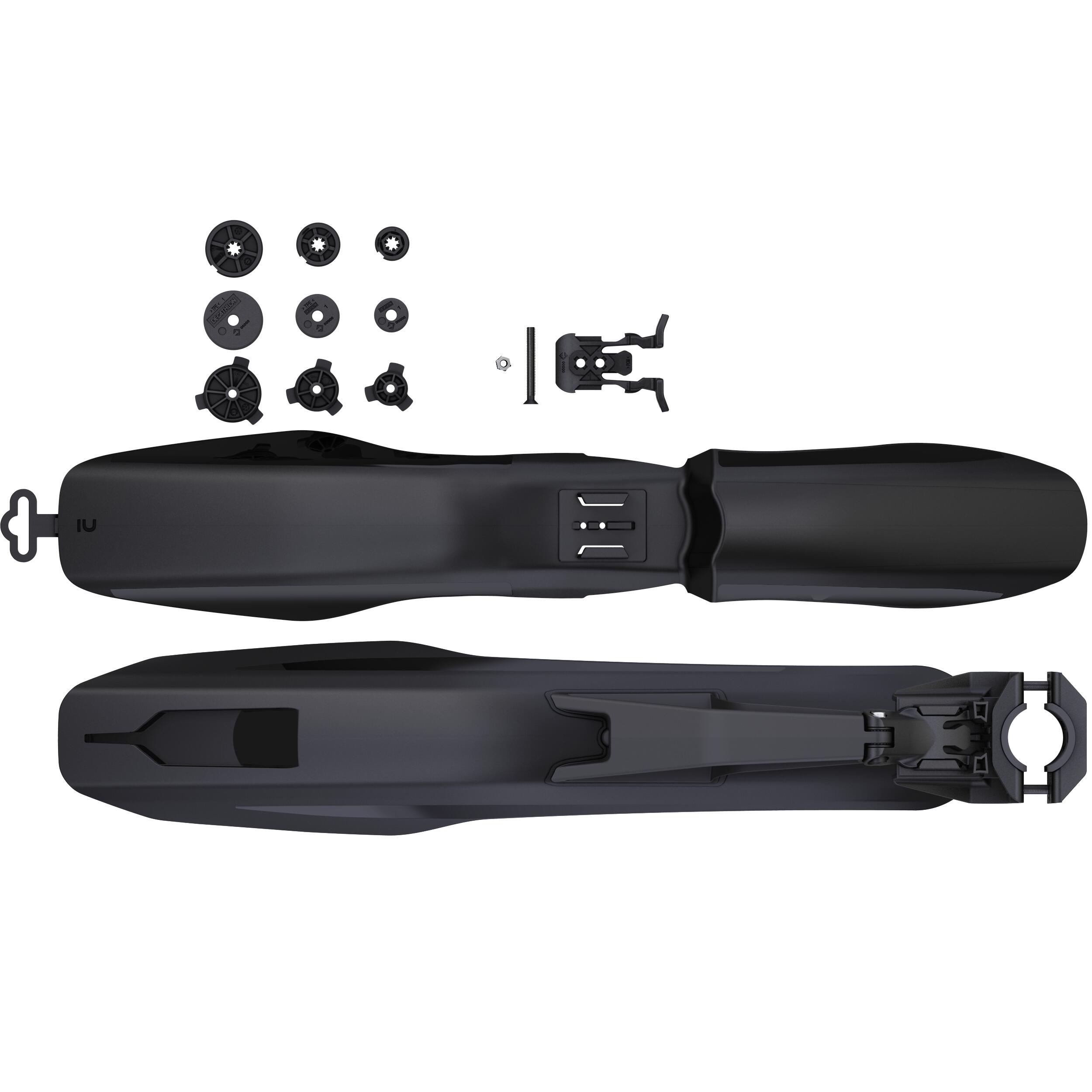

BOX CONTENTS

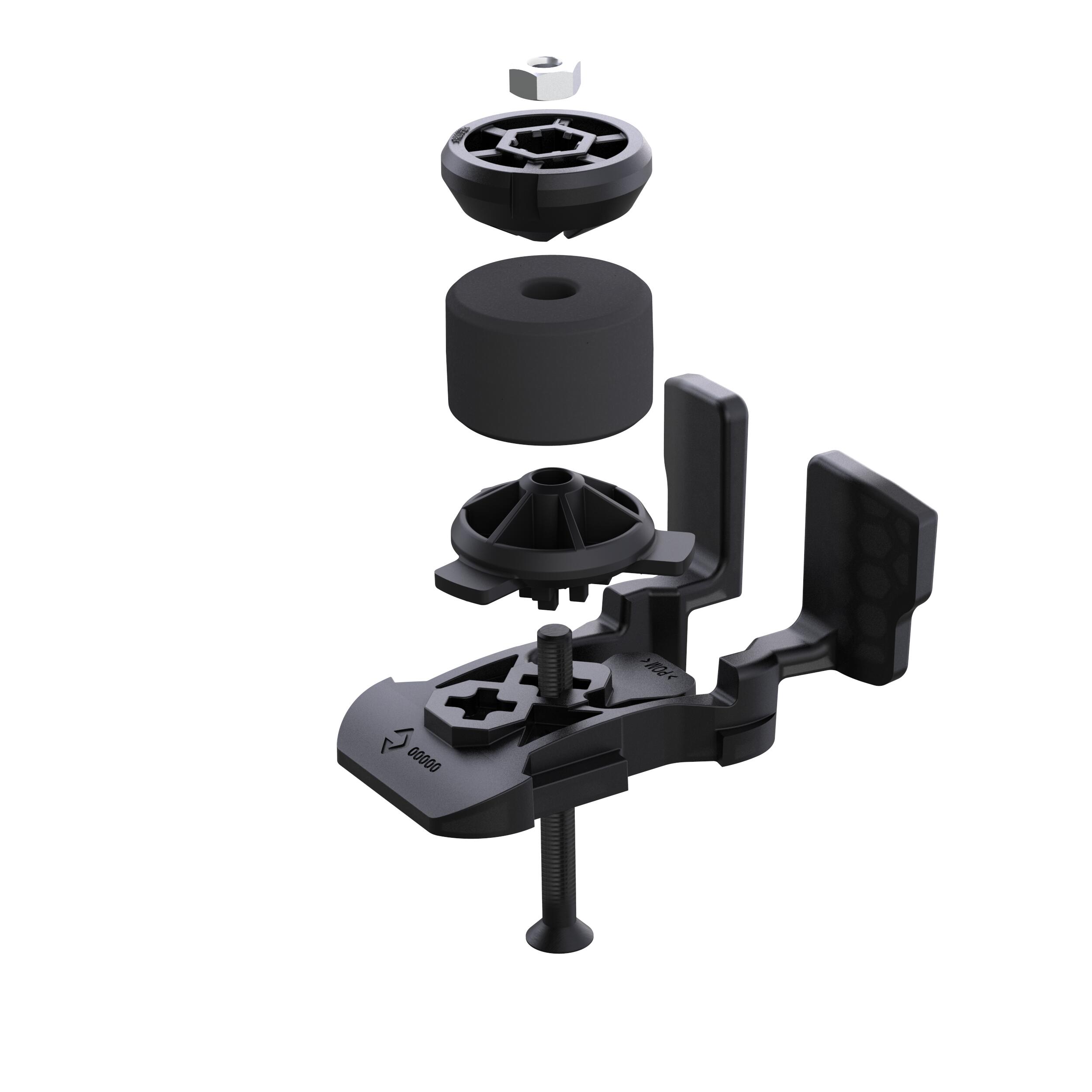

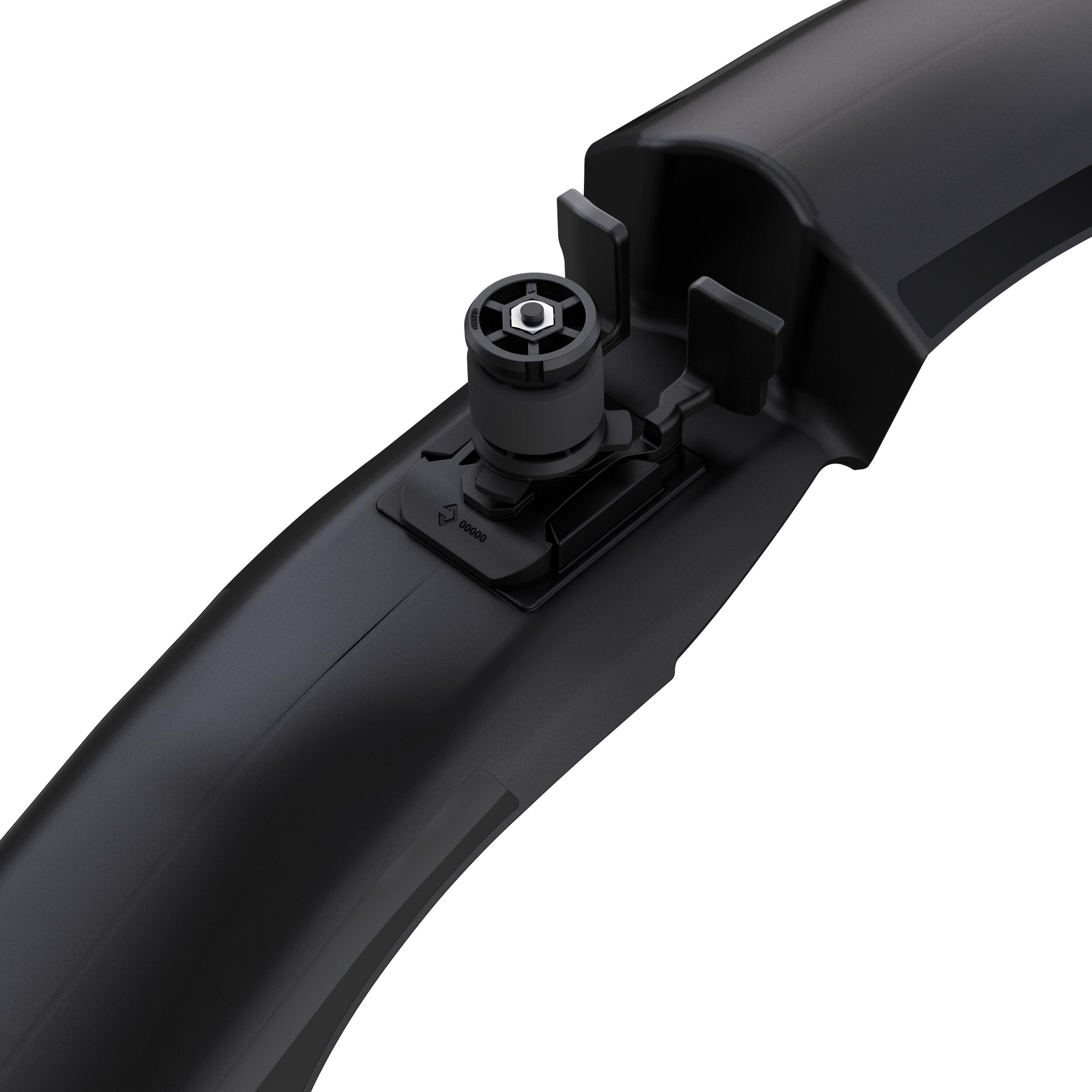

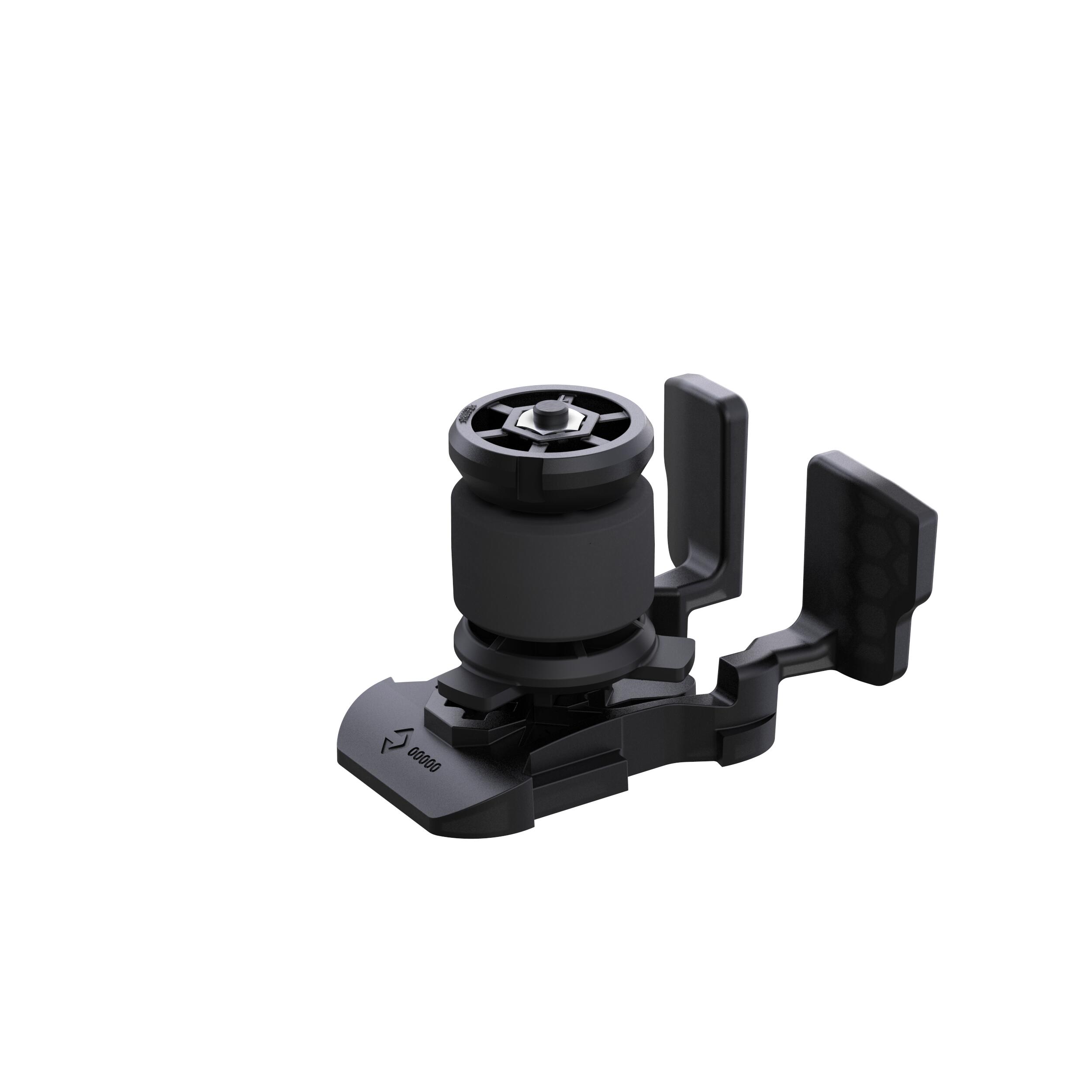

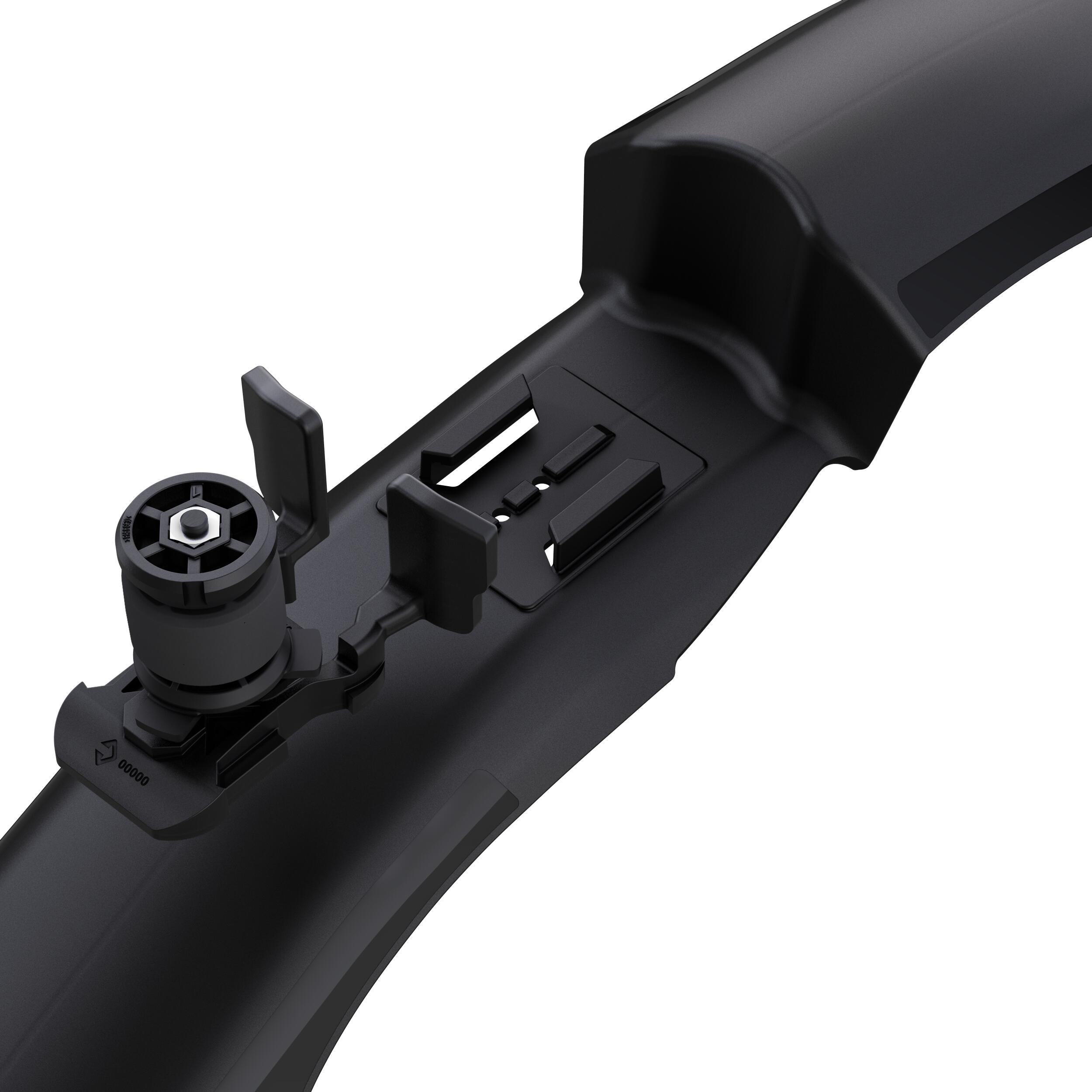

The front mudguard comes fully assembled and ready to be mounted, with a 23 mm medium expansion socket.

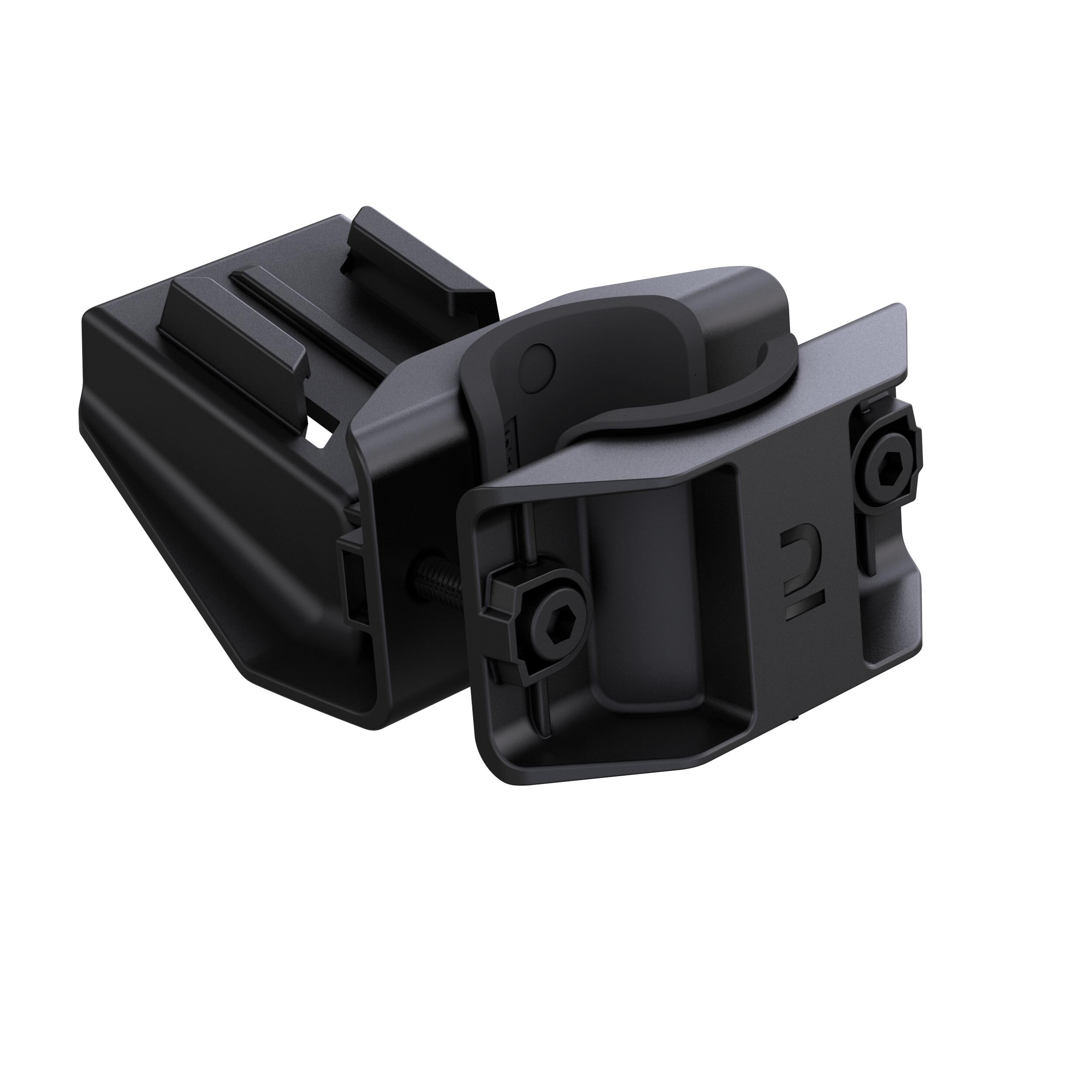

To make this product compatible with as many different telescopic forks as possible, there are 2 additional expansion sockets included in this kit: 1 smaller, 18 mm one and 1 bigger, 33 mm one.The rear mudguard comes fully assembled and ready to be mounted, no matter the diameter of your seat post.
A MODERN, EFFICIENT DESIGN
With dimensions that fit all the new wheel and tyre sizes on the market, and with a bold design, our mudguard kit gives your bike a modern, dynamic look.
Everything has been designed to give you the best experience:

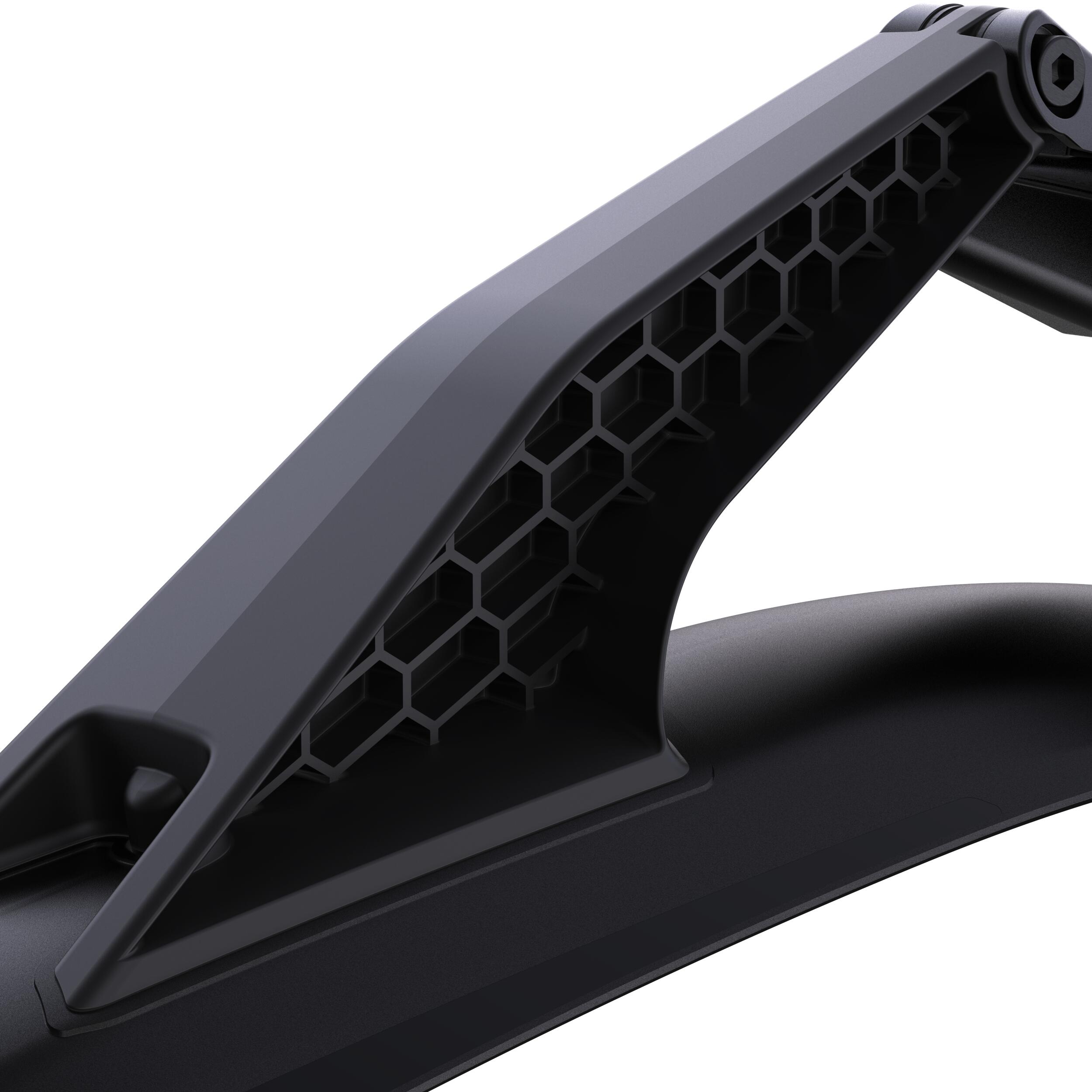

- A reliable screw-on bracket that holds the mudguards in the same position each time

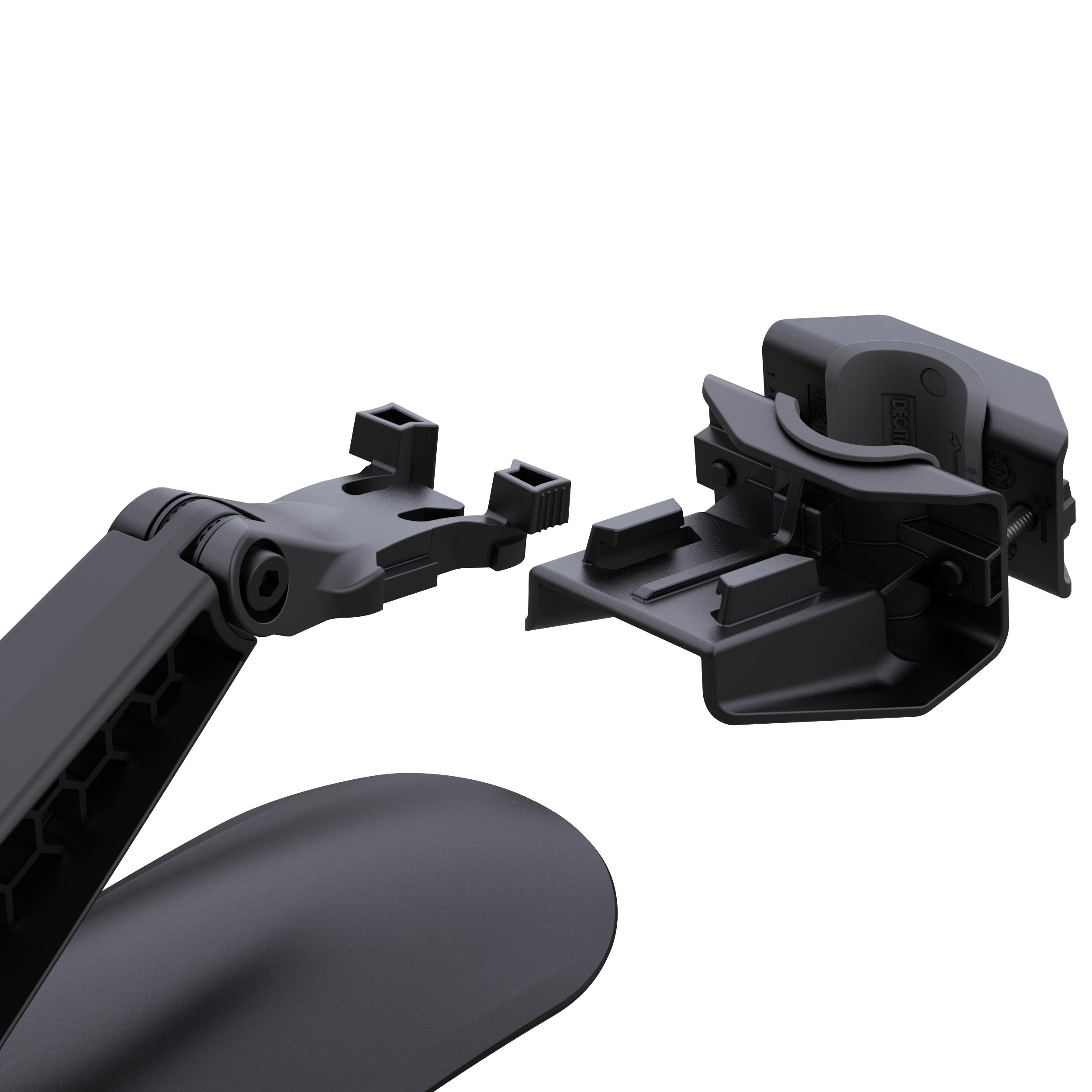

- An easy system to clip the blades onto and take them off your bike depending on the weather
- Compatibility with accessories (camera, lights)
COMPATIBLE ACCESSORIES

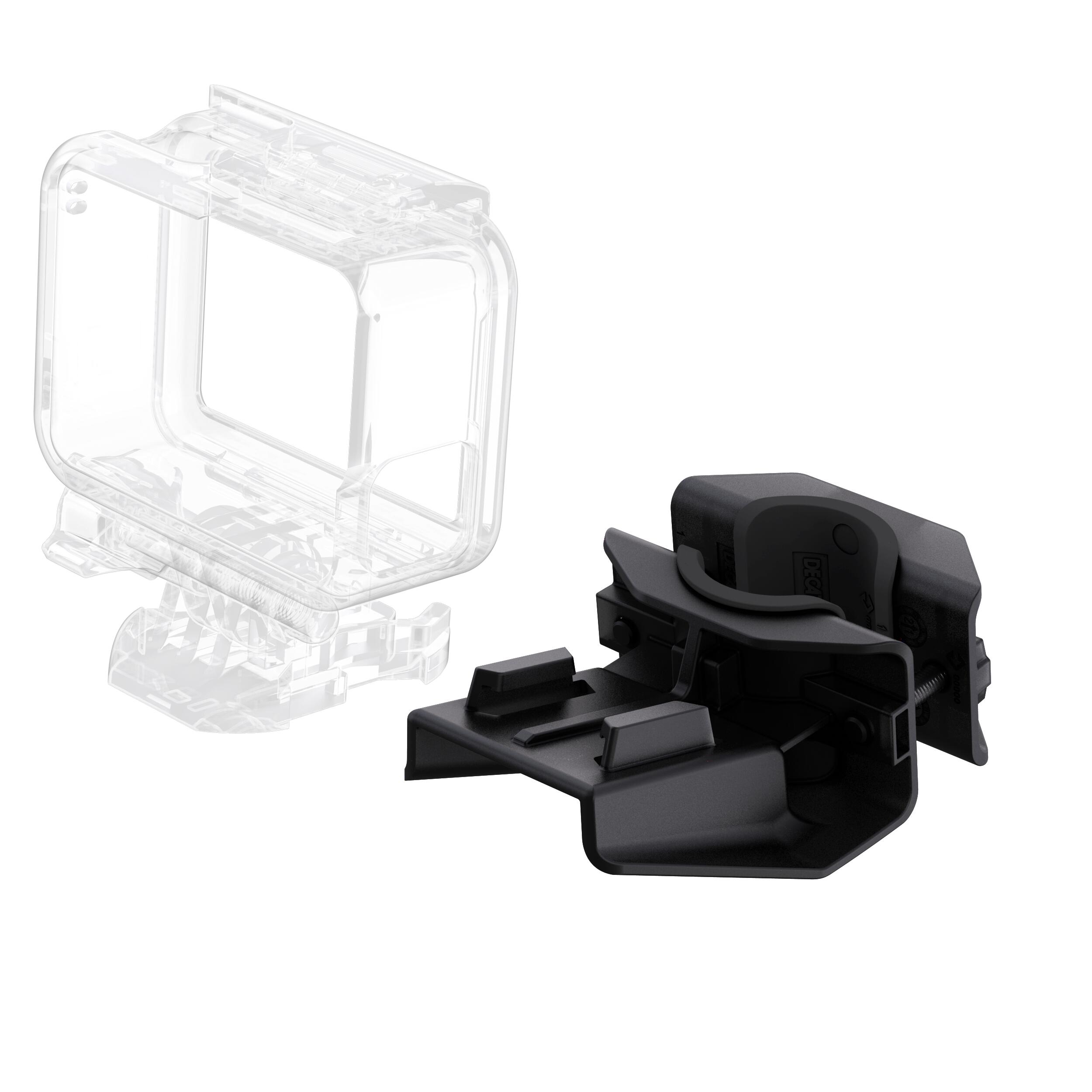

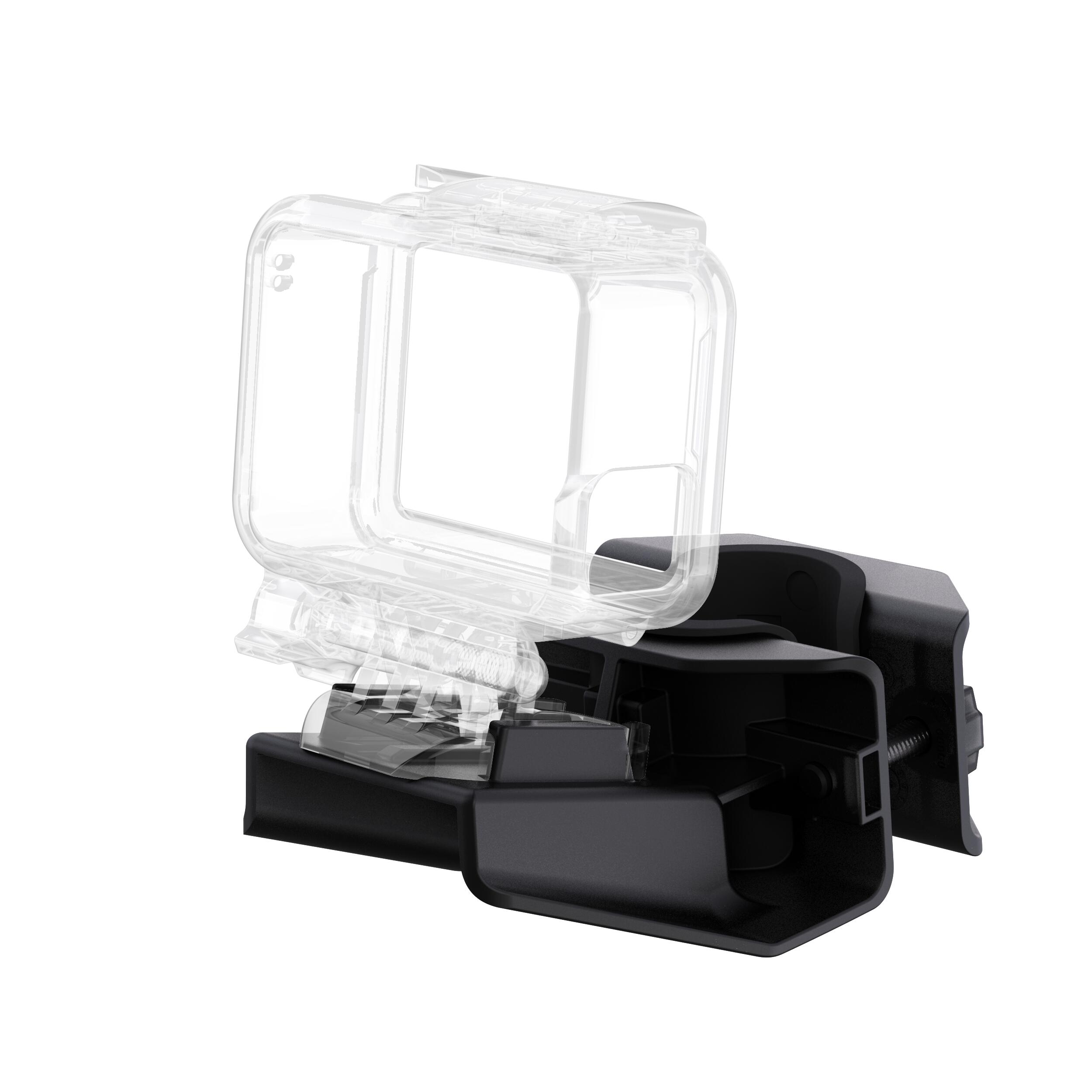

In dry weather, when there's no rain and mud about, you can unclip the blade from the rear bracket and clip a sports camera on instead. The camera must be compatible with the GoPro bracket system.

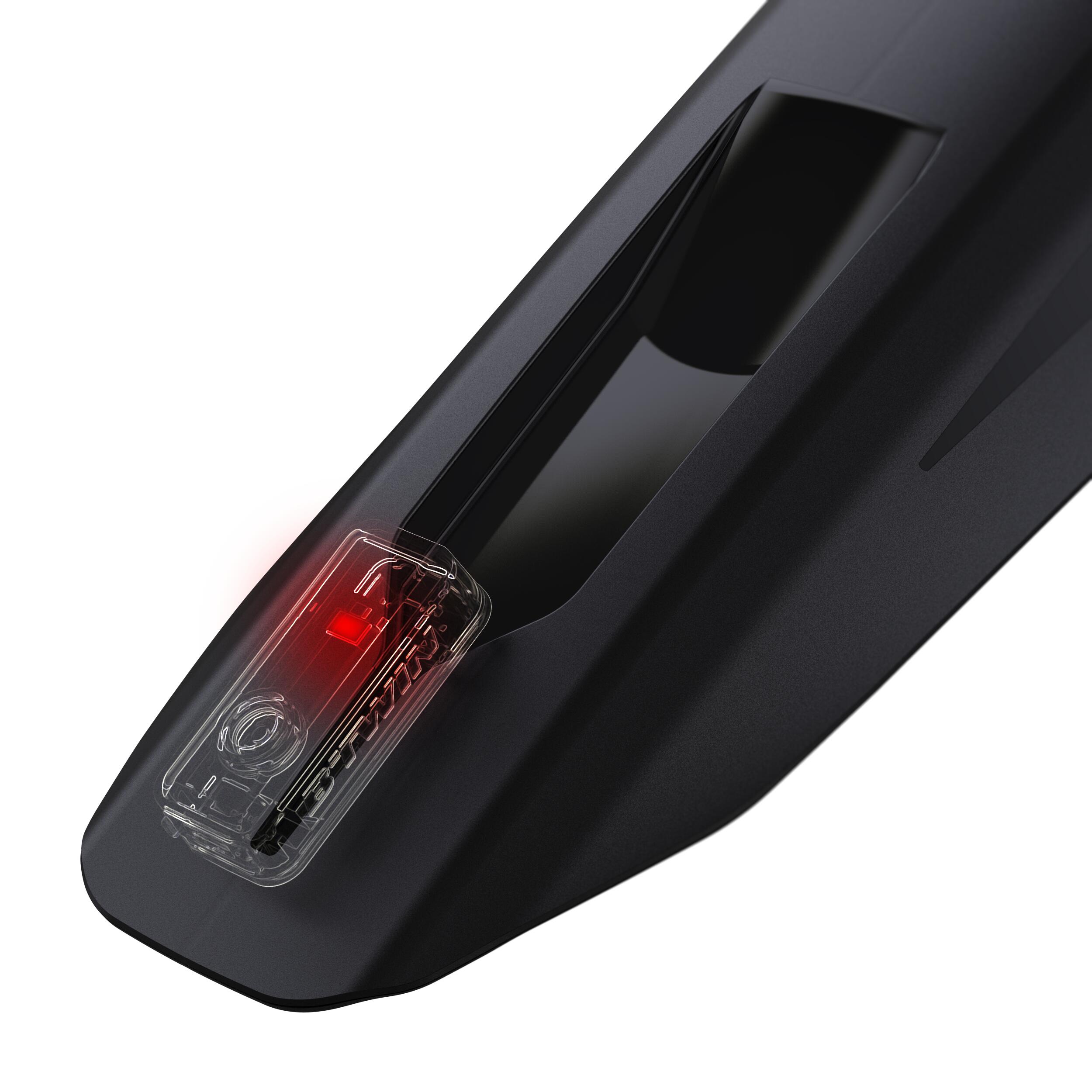

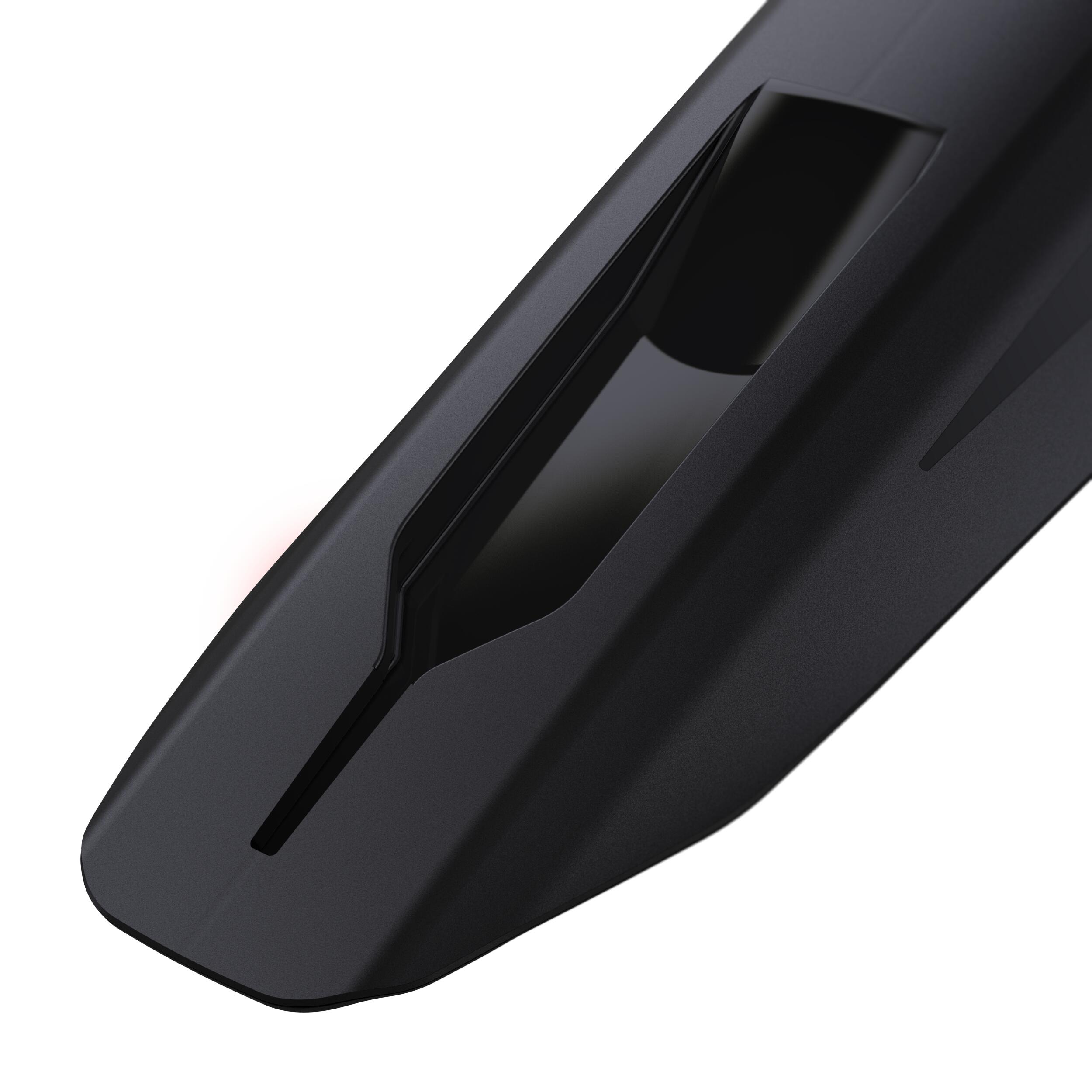

To keep you safe when riding early in the morning or late at night, there's a rail at the end of the rear blade that you can clip a rear, red light to: CL 100, CL 500, CL 900, ST 500 or RL 510 LED.
Dimensions and weight
Front:
Blade length: 553 mm
Blade width: 73 to 97 mm
Total weight: 120 g
Rear:
Blade length: 497 mm
Blade width: 73 to 95 mm
Total weight: 230 g
