ROCKRIDER
Women's 29" Mountain Bike Explore 540 - Plum/Black
Designed for regular bike touring.
The Shimano 10-speed single chainring provides endurance and flexibility.The Boost format makes the wheels more rigid, so they are more efficient and precise.
ID 8607220
BENEFITS
Ease of use
Adapt your speed with one hand, without thinking: single chainring drive train
Lifetime warranty
ROCKRIDER offers a lifetime warranty on the frame, handlebars and stem
Control
Enjoy the raised position, adjustable stem, 120 mm travel suspension.
Efficiency
29" wheels (27.5" in S), Shimano 10-speed chainring
Cushioning
120 mm X-Fusion RC32 air fork
Instructions
DownloadTECHNICAL INFORMATIONS
In a nutshell
Weight: 12.8 kg in size M (without pedals)
Frame material: Aluminium
Type: Hardtail
Wheel size: 29" (M / L), 27.5" (S)
Fork travel: 120 mm
Drivetrain: 1x10
Brakes: Hydraulic
Seatpost: Aluminium
Frame, stem and handlebar warranty: lifetime
Weight
S: 12.6 kg
M: 12.8 kg
L: 12.85 kg
Net weight without pedals
Frame
Composition: 6061 butted aluminium
148 mm x 12 mm Boost rear axle
Bolt through axle
73 mm threaded bottom bracket (BSA)
Protective cover for dropper seat post cable and housing
31.6 mm seat tube
Tapered head tube
2 bottle cage mounts (1 on size S) / Pannier rack mounts

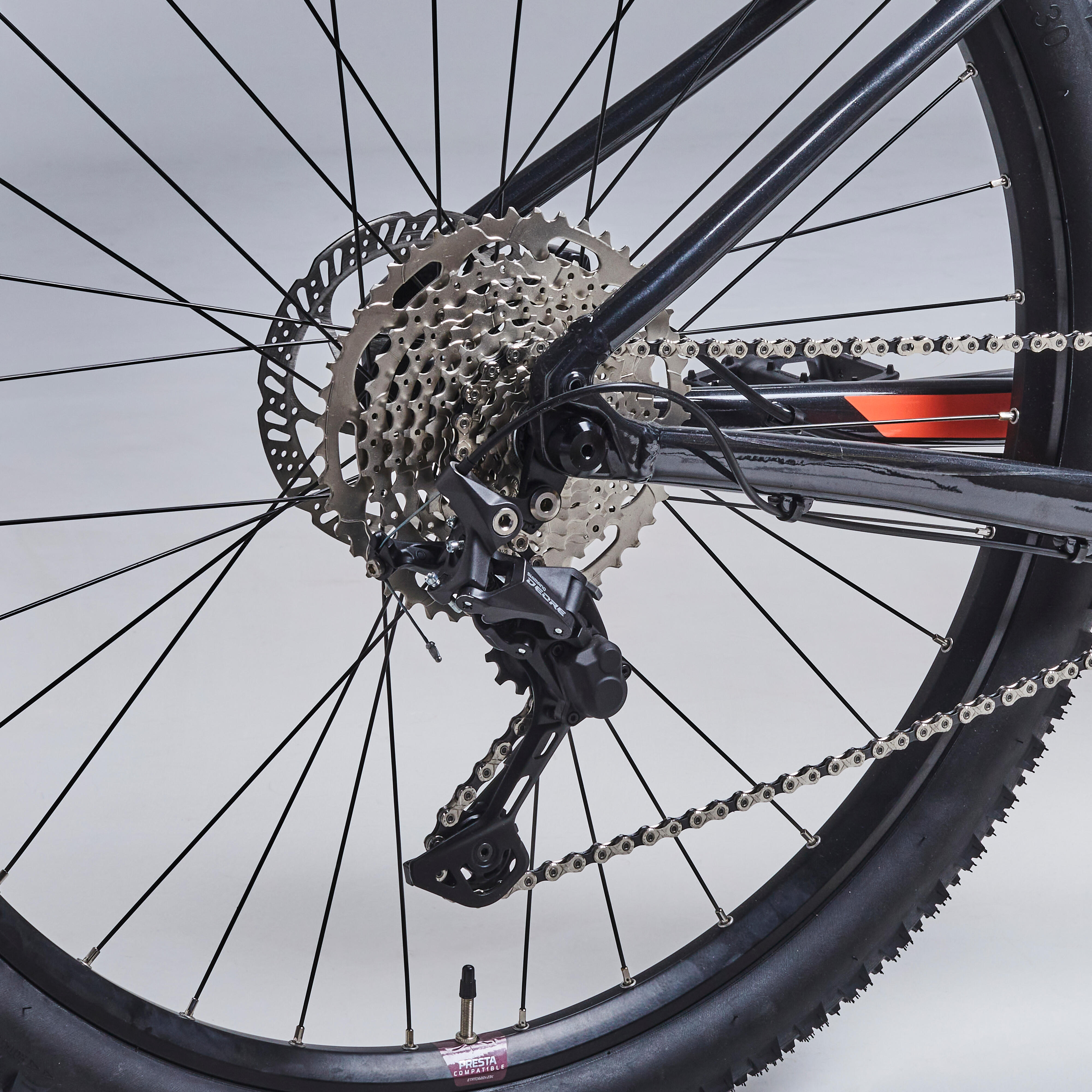

Drivetrain
Shimano CUES
30 T single chainring (compatible with 32 T)
175 mm crank
"Thru axle / external bearing" bottom bracket
10-speed shifter and rear derailleur
11-46 cassette
KMC X10 chain
Suspension
X-Fusion RC32 fork, adjustable starting at 45 kg
AIR type
120 mm travel
Damping rod diameter: 32 mm
Bolt thru axle
15 x 110 mm BOOST format
Turnkey lockout on the fork
Or
SR Suntour XCR 32 fork based on component availability
AIR type
120 mm travel
Damping rod diameter: 32 mm
Bolt thru axle
15 x 110 mm BOOST format
Wheels
29" (M / L), 27.5" (S)
Tubeless ready rims, Presta valve
23 mm inner width (28 mm outer)
32 spokes
Thru axle / Boost format hub
6-bolt disc
Shimano/Sram freehub
Sealed bearings
Brakes
Hydraulic disc brakes
Tektro TK-M276
Brake levers 1 cm closer
Number of pistons: 2
Front disc: 180 mm
Rear disc: 160 mm
Adjustable reach: Yes

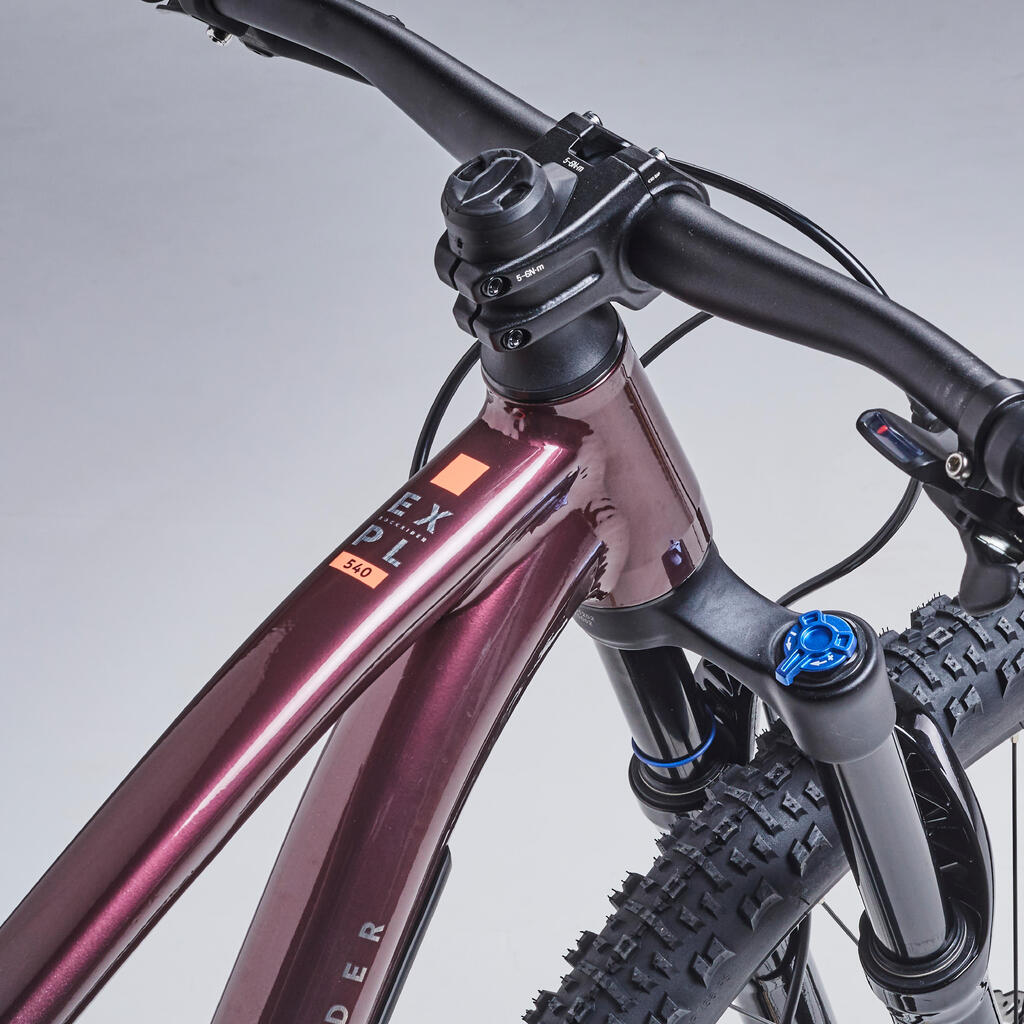

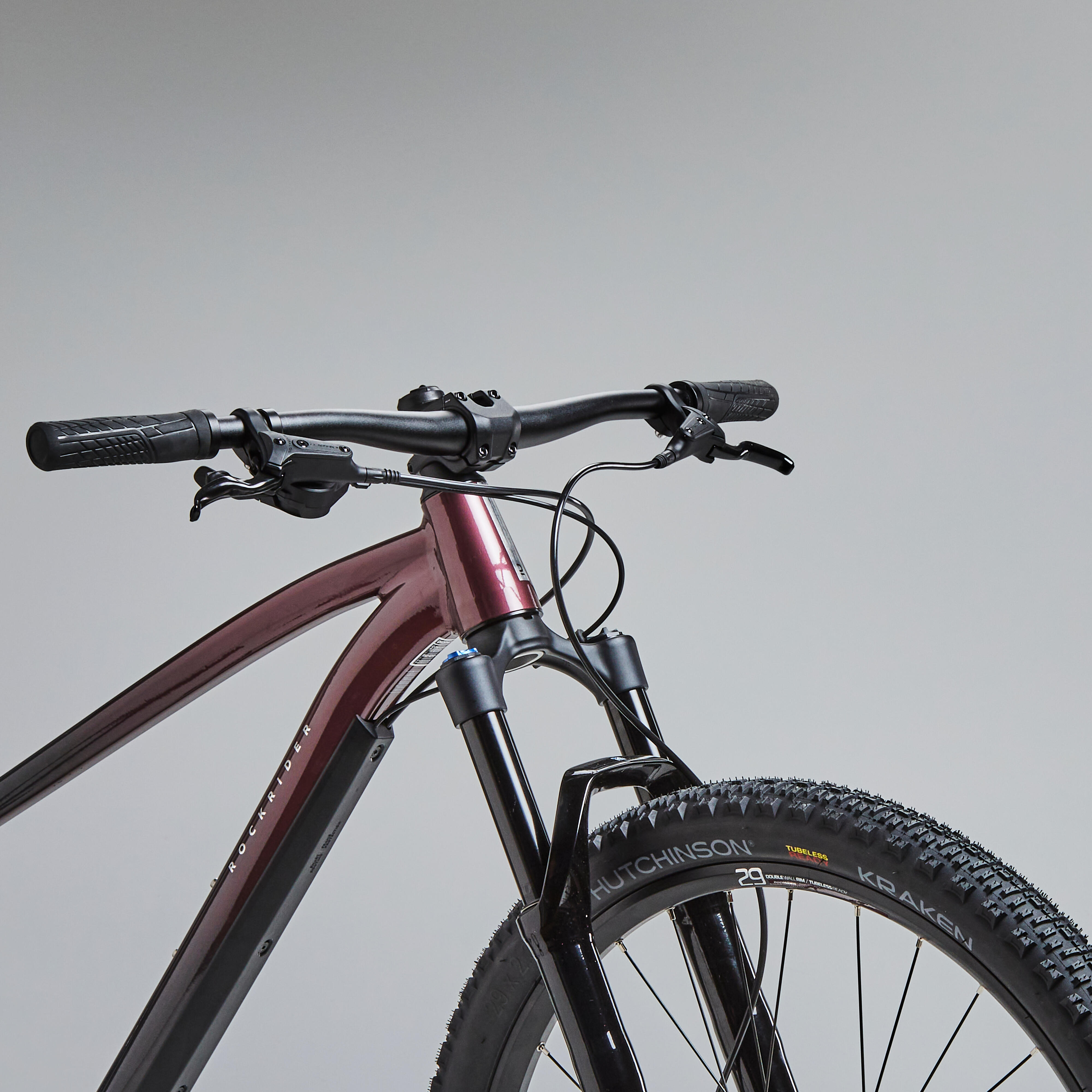

Riding position
Handlebar: Rockrider Sport
Material: Aluminium
Width: 700 mm
Stem: Rockrider
Material: Aluminum
Size: 40 mm
4 adjustment increments: +0 mm, +5 mm, +20 mm, +25 mm
Compatible with Garmin, Mio or Bryton bike computer / GPS brackets
Grips: Rockrider Ergonomic
Saddle and seat post
Rockrider Ergonomic women's saddle with hollow centre
Rockrider Sport seat post
Material: Aluminium
Diameter: 31.6 mm
Length 400 mm
With tool holder (4 mm and 6 mm Allen keys included)
Compatible with dropper seat posts
Tyre
Hutchinson Kraken
29"x2.3" (M / L), 27.5"x2.3" (S)
Carcass: 60 TPI
Tubeless ready
Pedals
Rockrider 520 Grip resin flat pedals
ACCESSORIES INCLUDED
Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals.
COMPOSITION
composition
Frame (for bike): 100.0% [EN] Aluminium
Tips for storage and maintenance
Storage tips
After washing, pass a dry cloth to remove all traces of moisture. Lubricate the drive train and store the bike in a cool, dry place away from corrosive products and salty air.
Restrictions on use
Not suitable for XC, All Mountain, Enduro and BMX mountain bikin
TESTS AND WARRANTY
Test product
Ask your local Decathlon store about testing before purchase.
Agree by
Our engineers always have real mountain bikers test all our products in real conditions. These tests round out our lab tests and let us validate all our products before they hit store shelves.
Parts guarantee
Lifetime (frame, stem, handlebars). Availability of spare parts: 2 years.
