ROCKRIDER

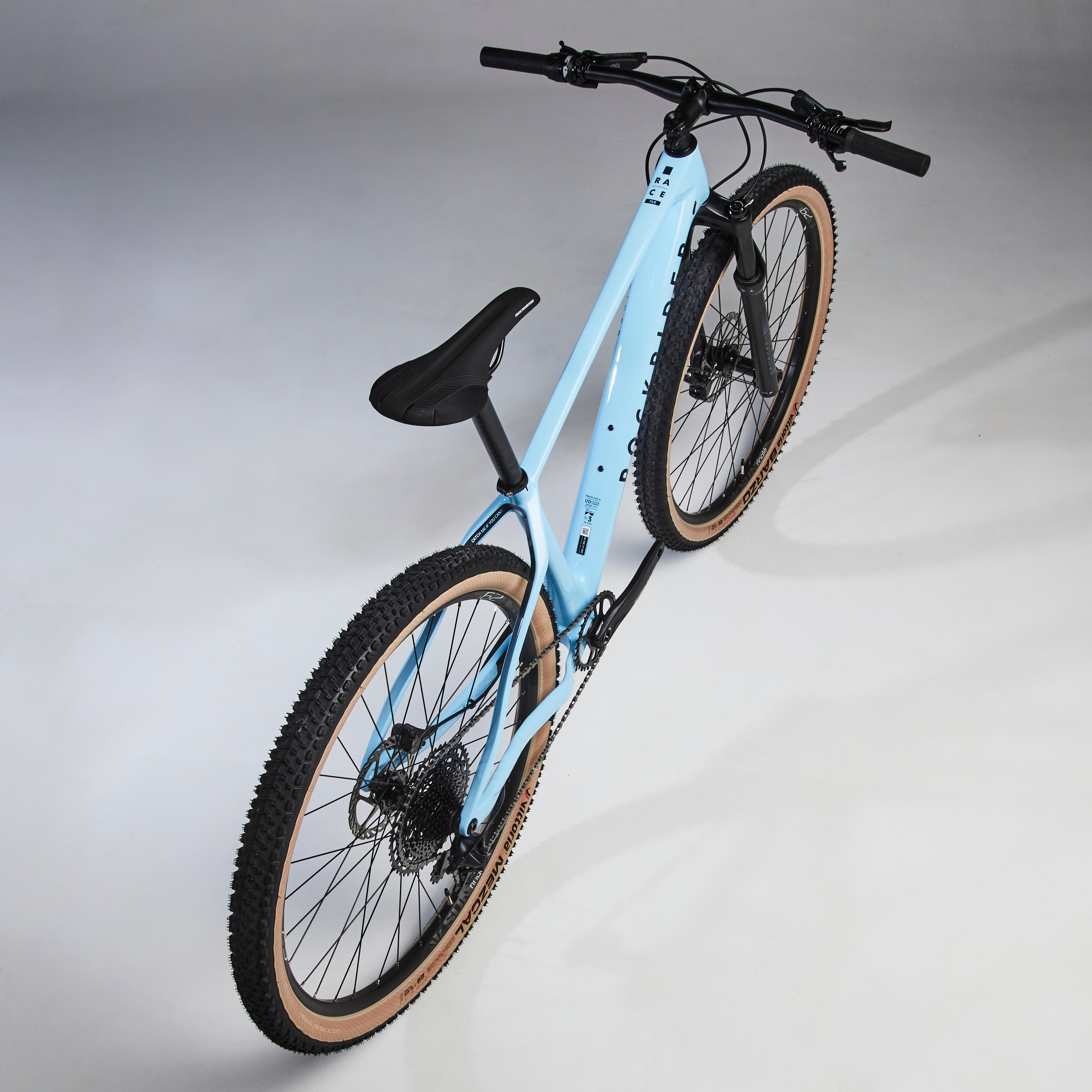

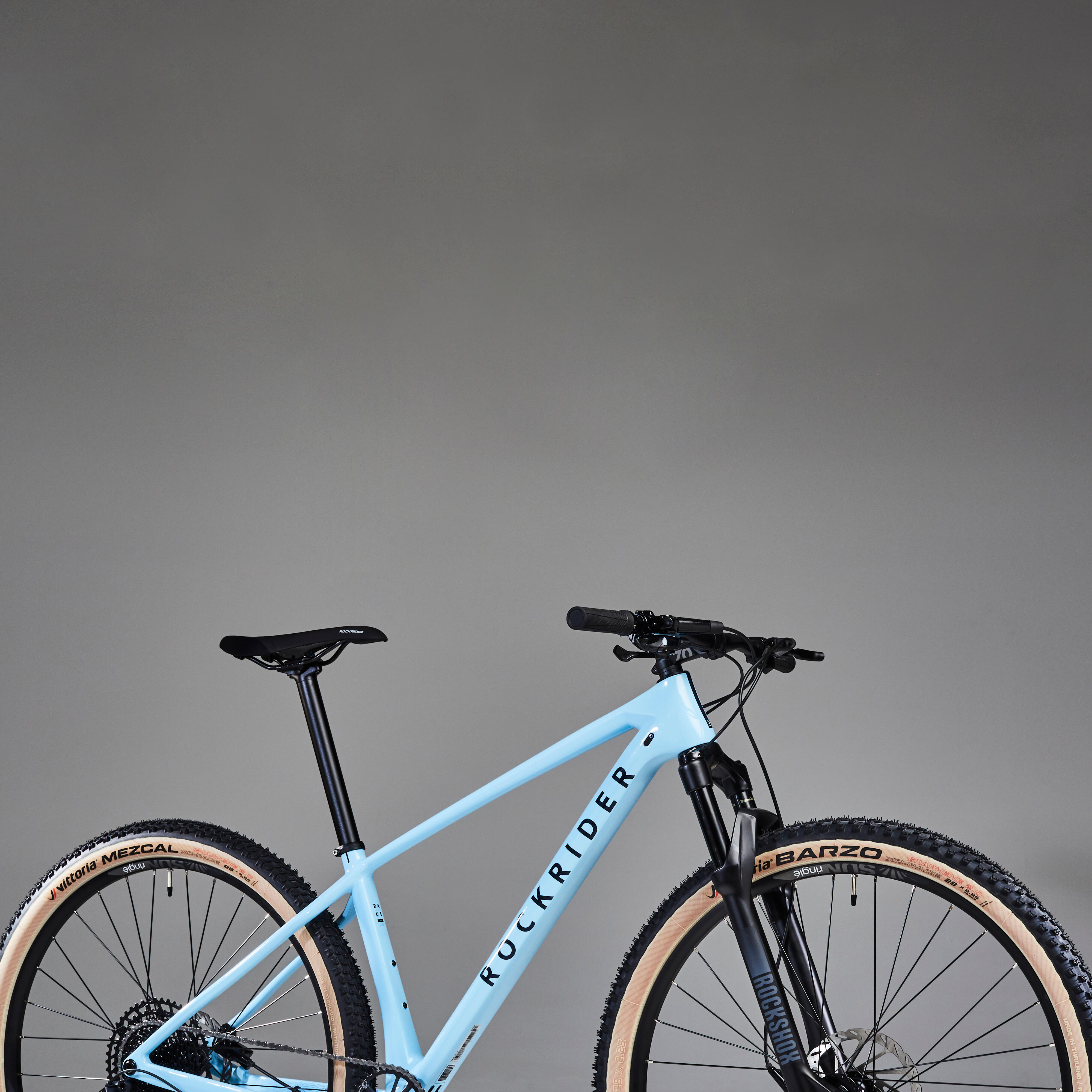

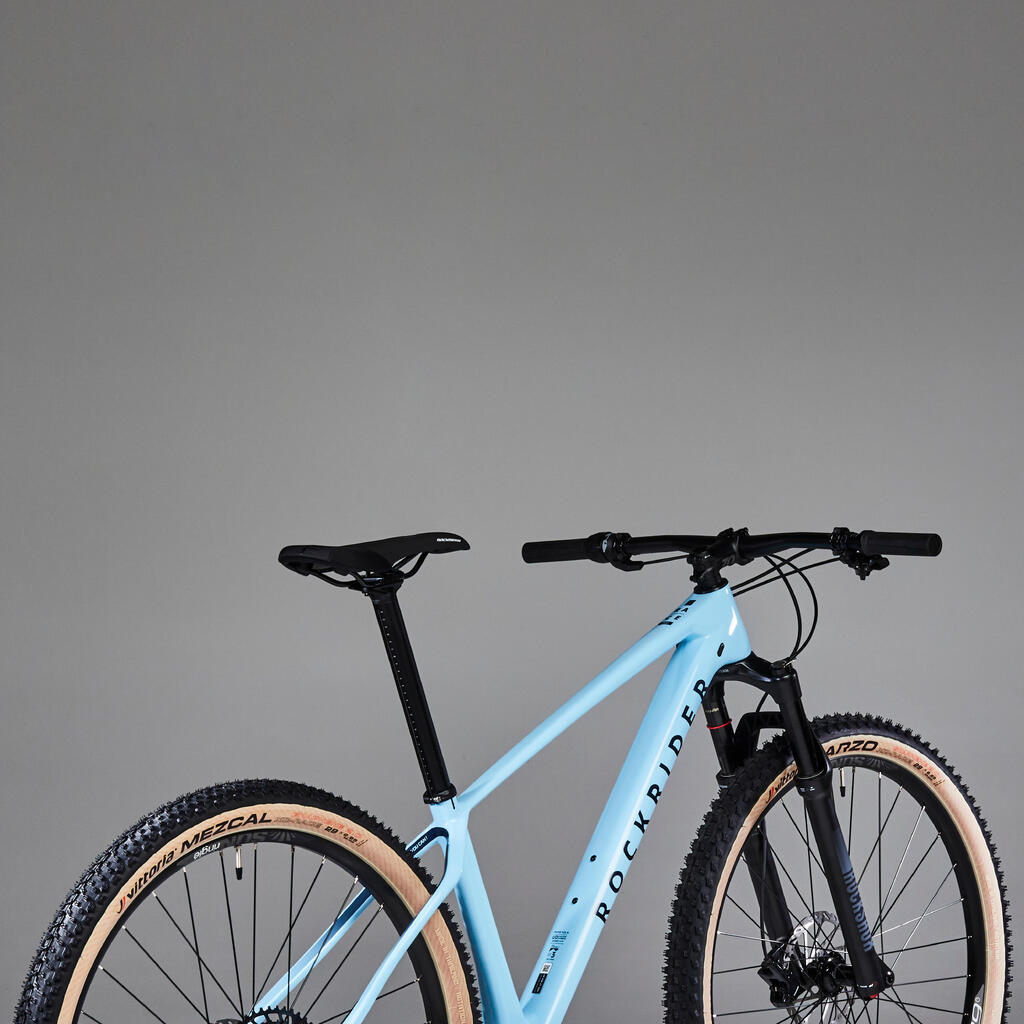

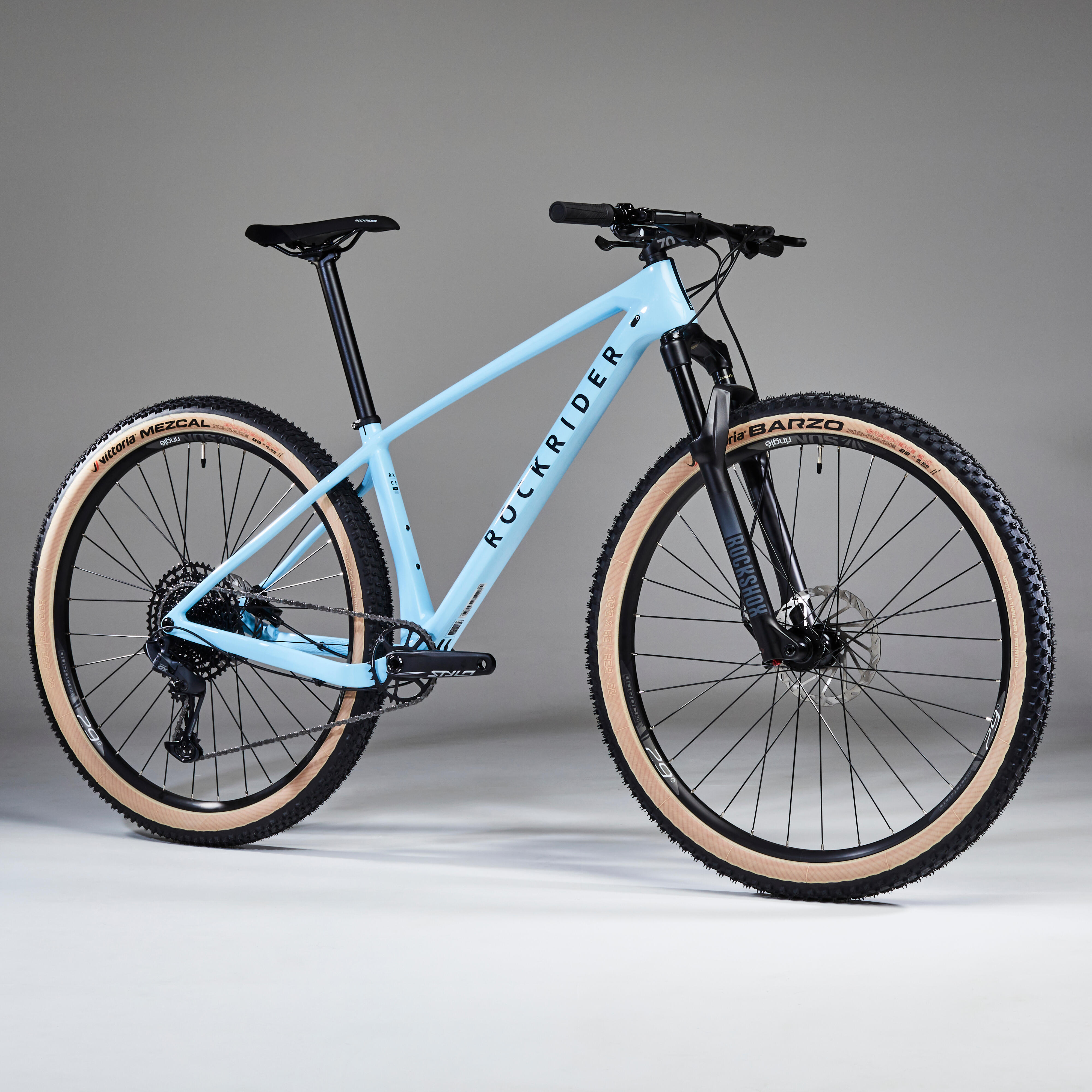

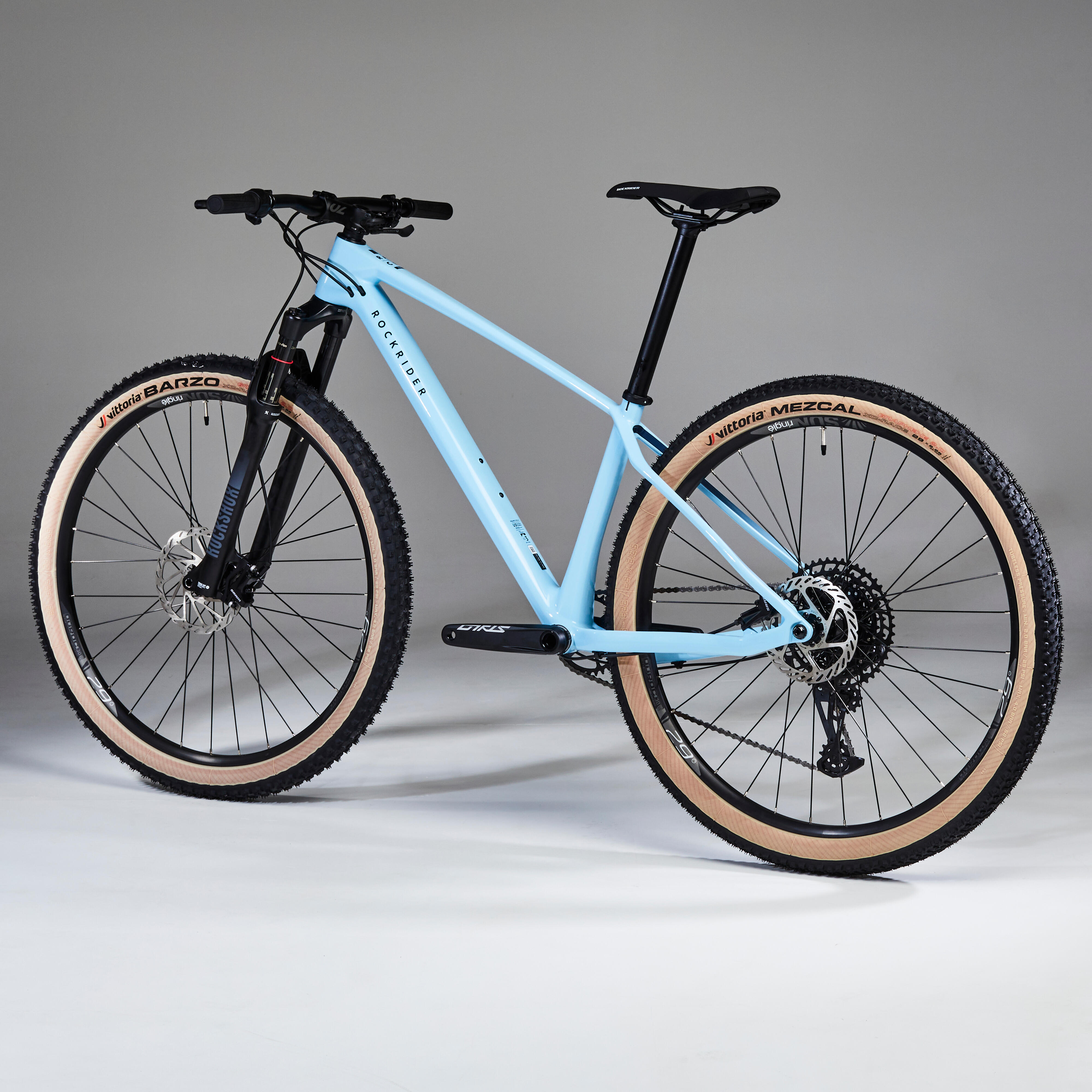

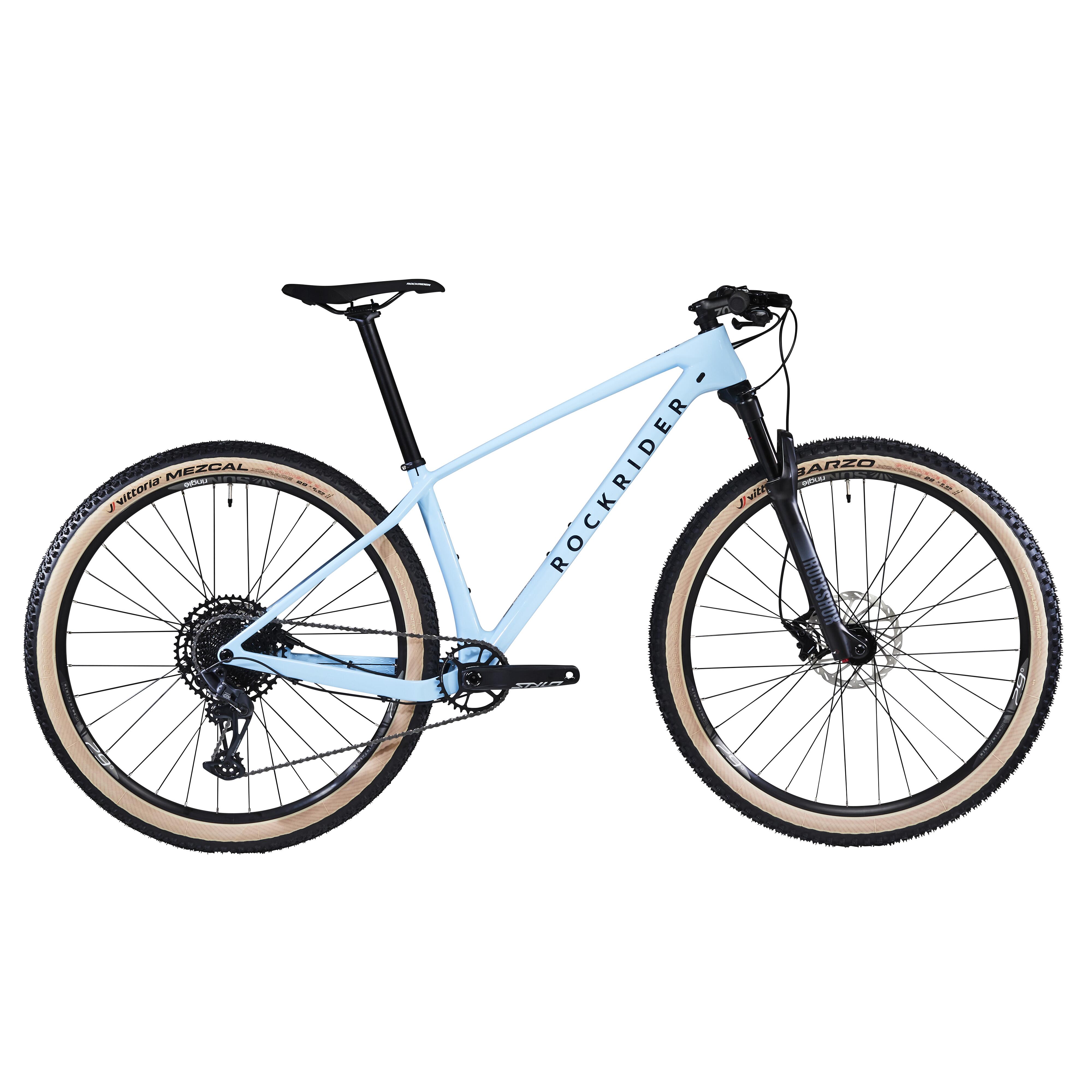

MTB Cross Country Race 740 Carbon Frame - Blue
This mountain bike is designed for improving in cross country riding (XC)
A performance XC mountain bike for those wanting to take cross-country a little more seriously. The carbon frame is lightweight, and the disc brakes offer consistent stopping power in all weathers.
ID 8615562
BENEFITS
Lightweight
Full carbon frame Weighs 1150 g in size M (gross)
Precision
Sram GX/NX Eagle 11/50 groupset with Truvativ STYLO crankset
Manoeuvrability

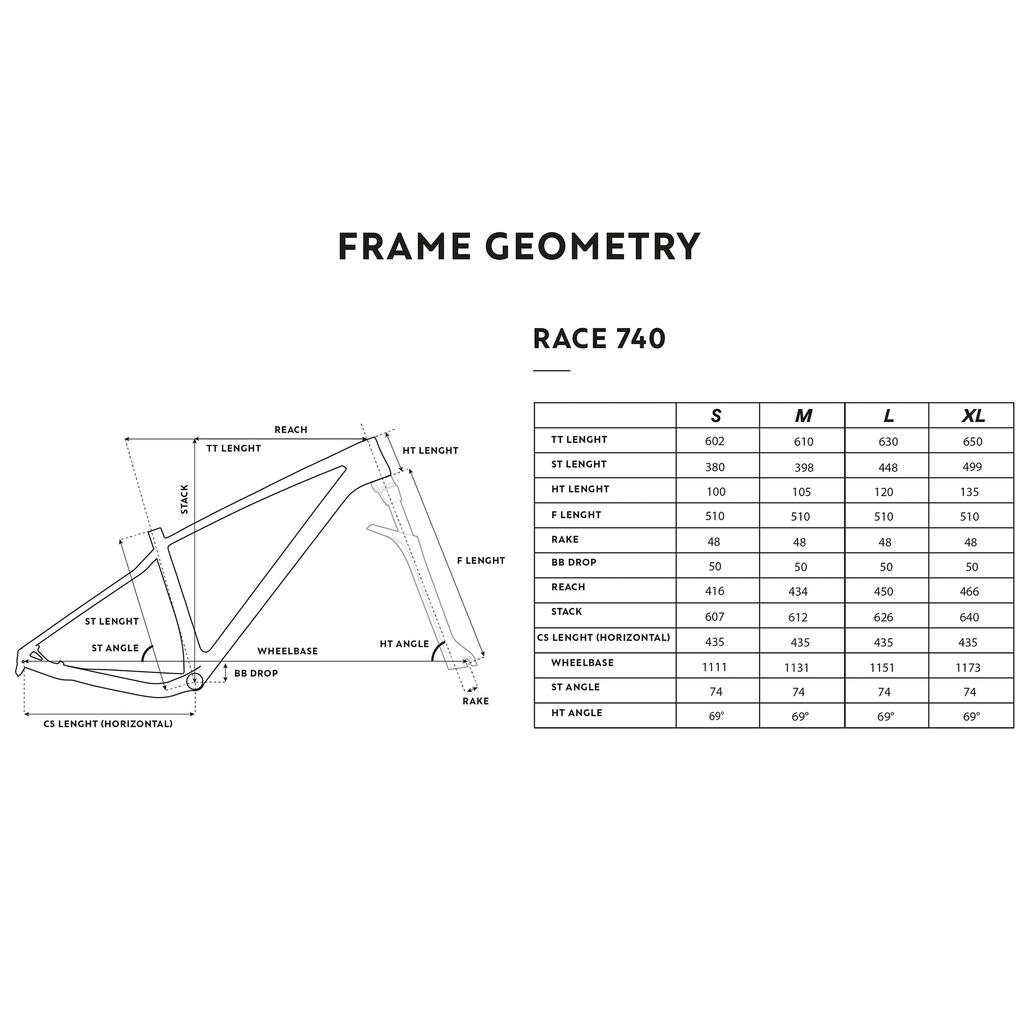

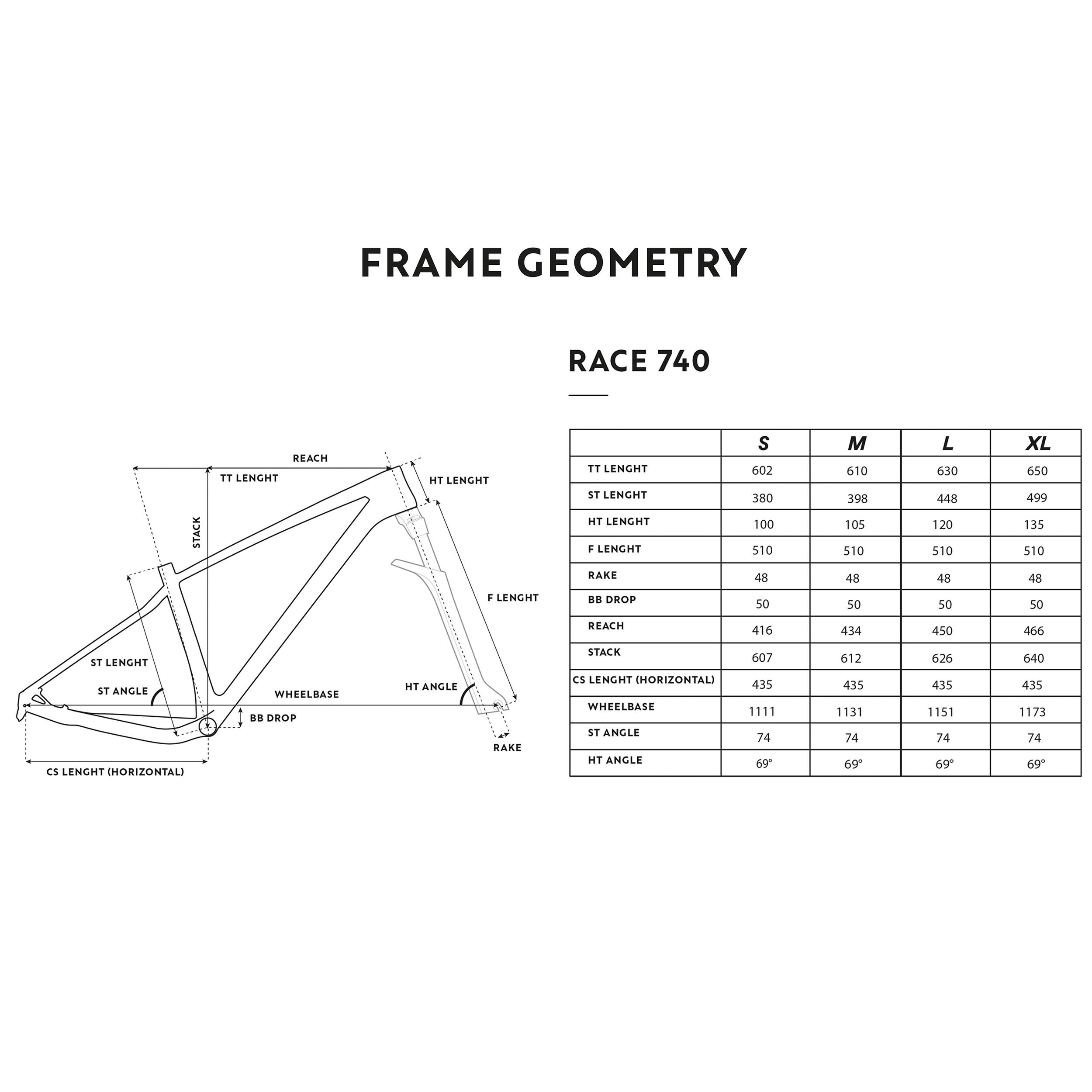

435 mm chainstays, longer reach, 69° head tube angle and short stem
Efficiency
Sram GX Eagle derailleur and shifter
Braking power
Sram Level T brakes with 180 mm rotor at the front and 160 mm at the rear
Instructions
DownloadTECHNICAL INFORMATIONS
Weight
Blue:
S: 11.5 kg
M: 11.6 kg
L: 11.7 kg
XL: 11.8 kg
Green
S: 11.3 kg
M: 11.4 kg
L: 11.5 kg
XL: 11.6 kg
Weight without pedals, with inner tubes

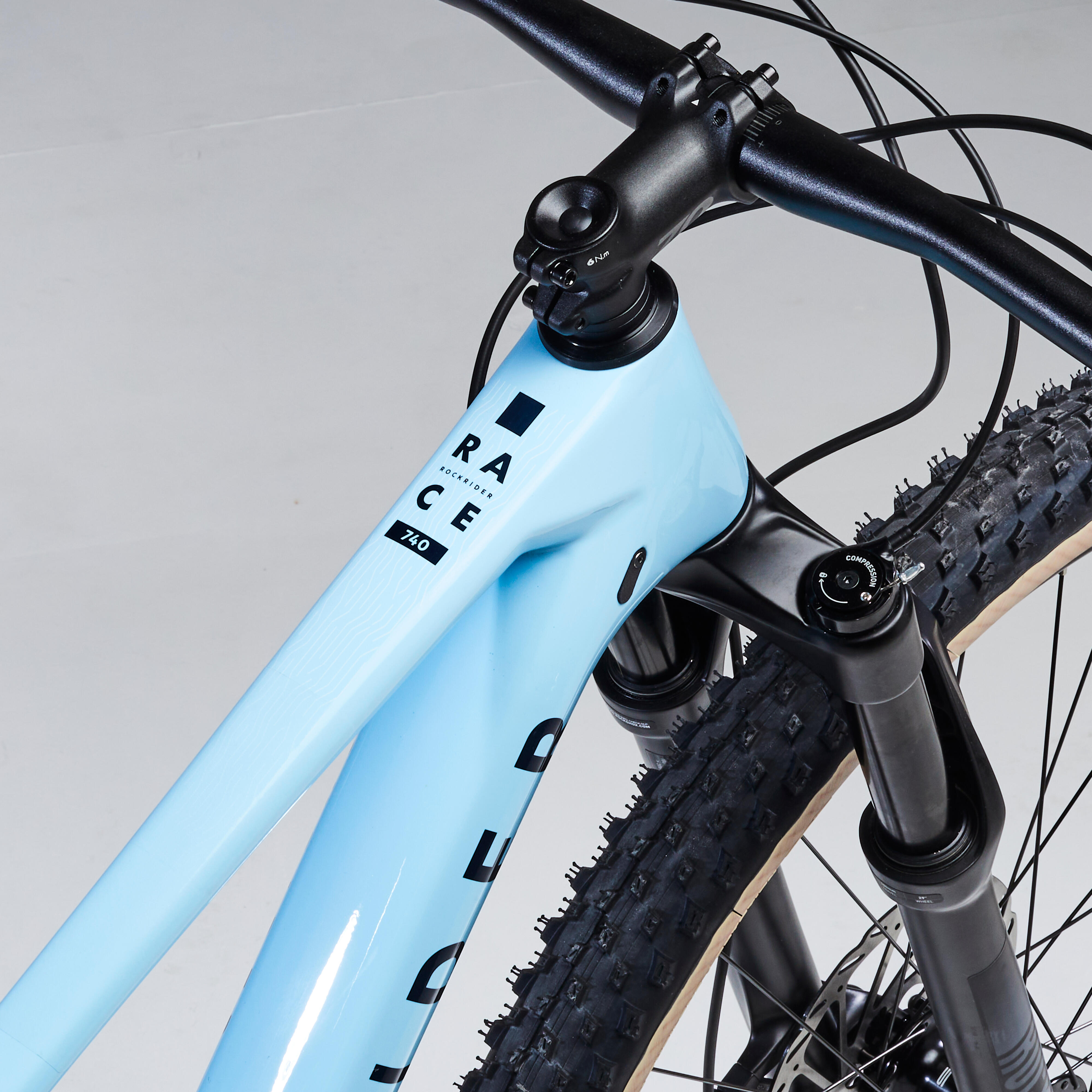

Frame
Full carbon
1150 g in size M (gross, without hardware)
31.6 mm seat post
Compatible with dropper posts (internal routing)
Thru axle
BOOST format
PressFit 92 bottom bracket
Compatible with 2 bottle cages
Sram UDH derailleur hanger

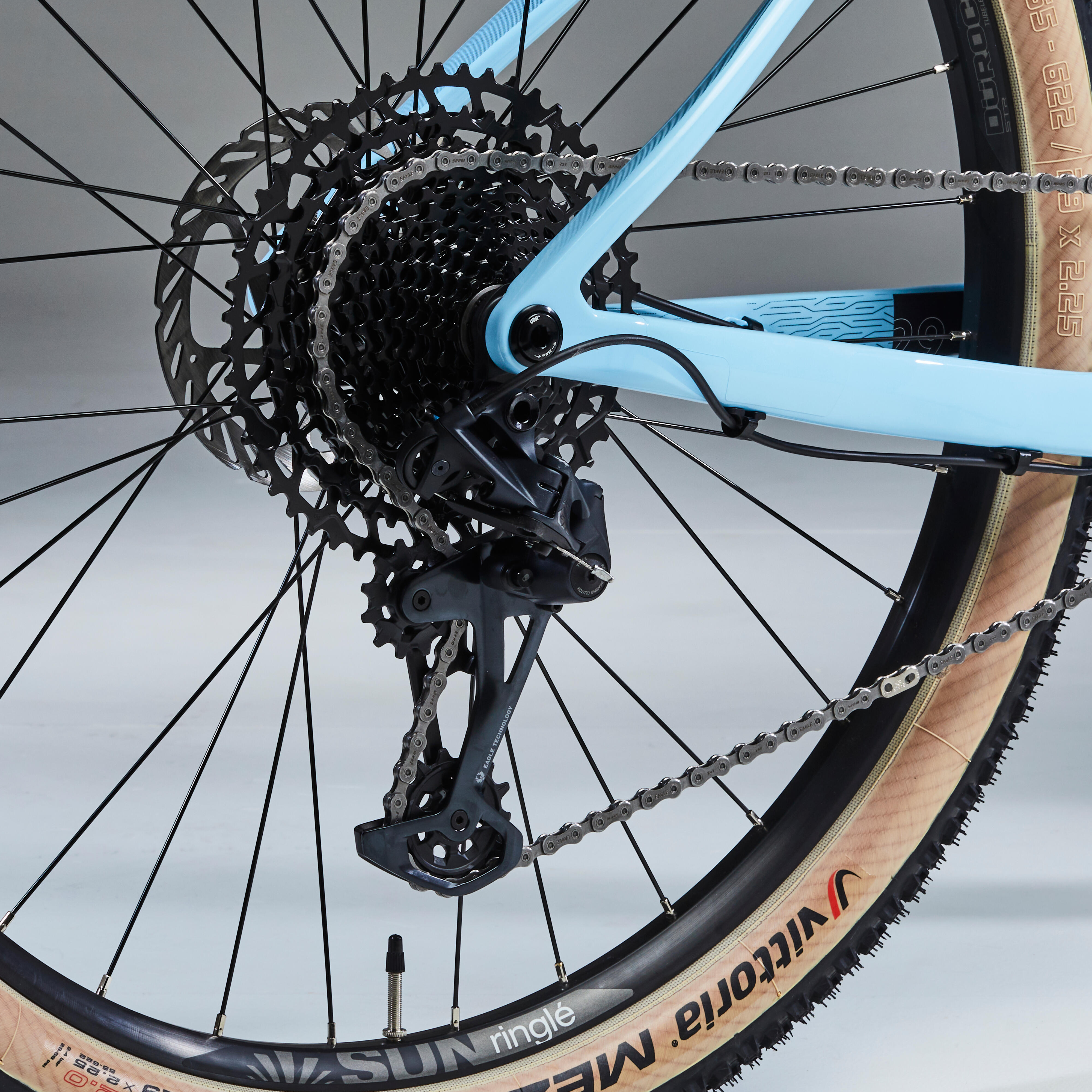

Drivetrain

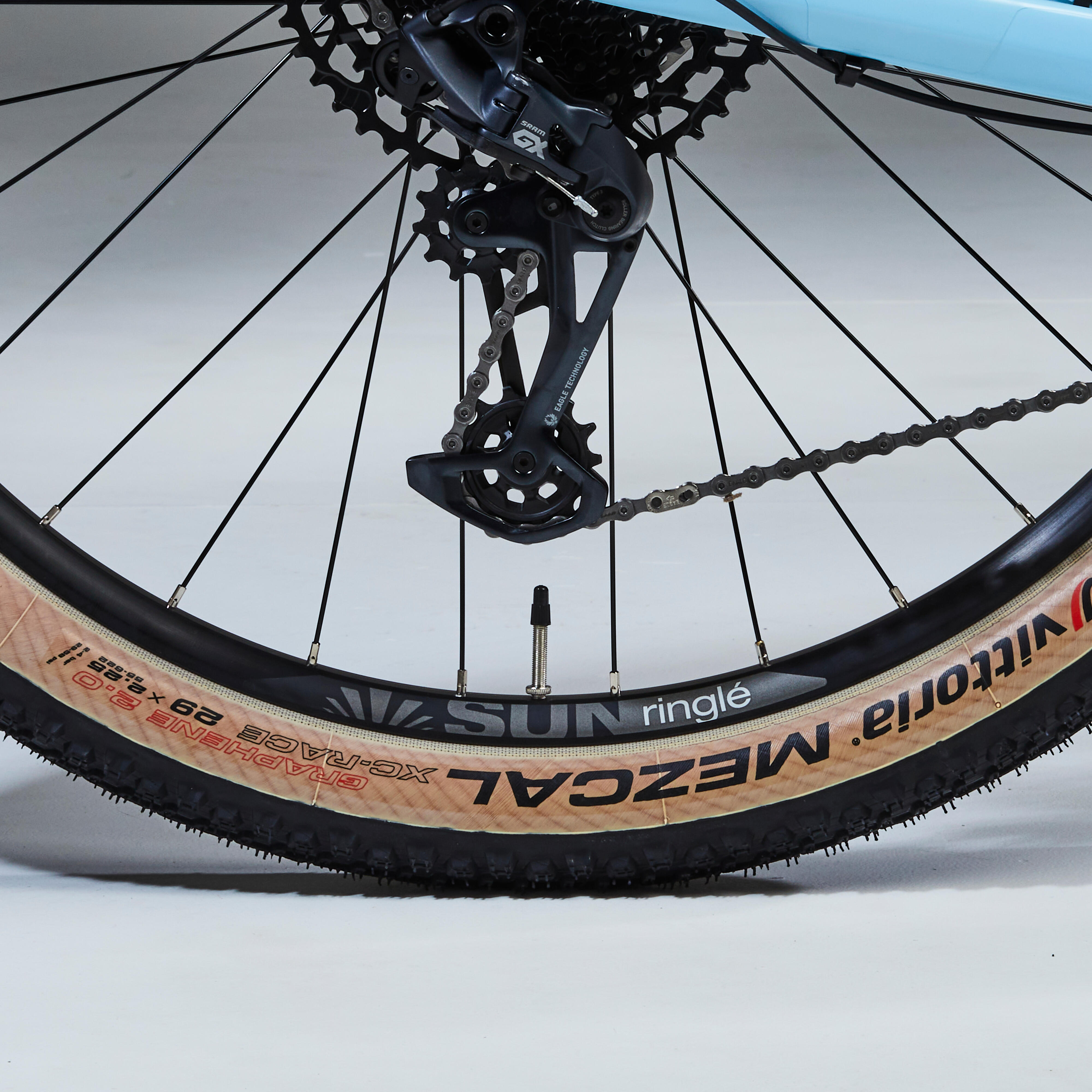

Sram GX Eagle rear derailleur and shifter

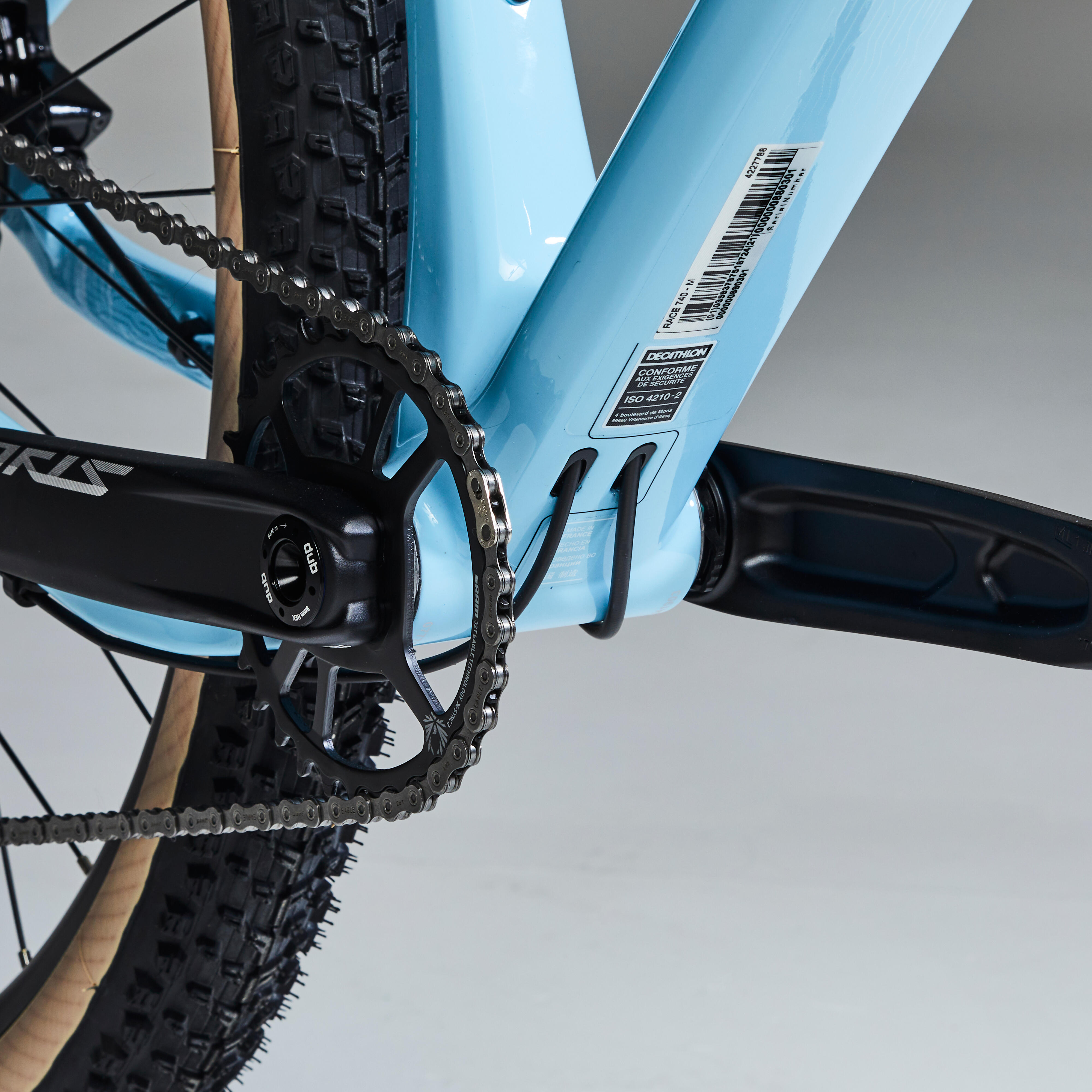

Truvativ STYLO 6K crankset (170 mm in S and M, and 175 mm in L and XL)
32T chainring (compatible with 30, 32, 34 and 36T)
SRAM PG1230 11-50 cassette
Sram NX chain
Sram PF 92 bottom bracket

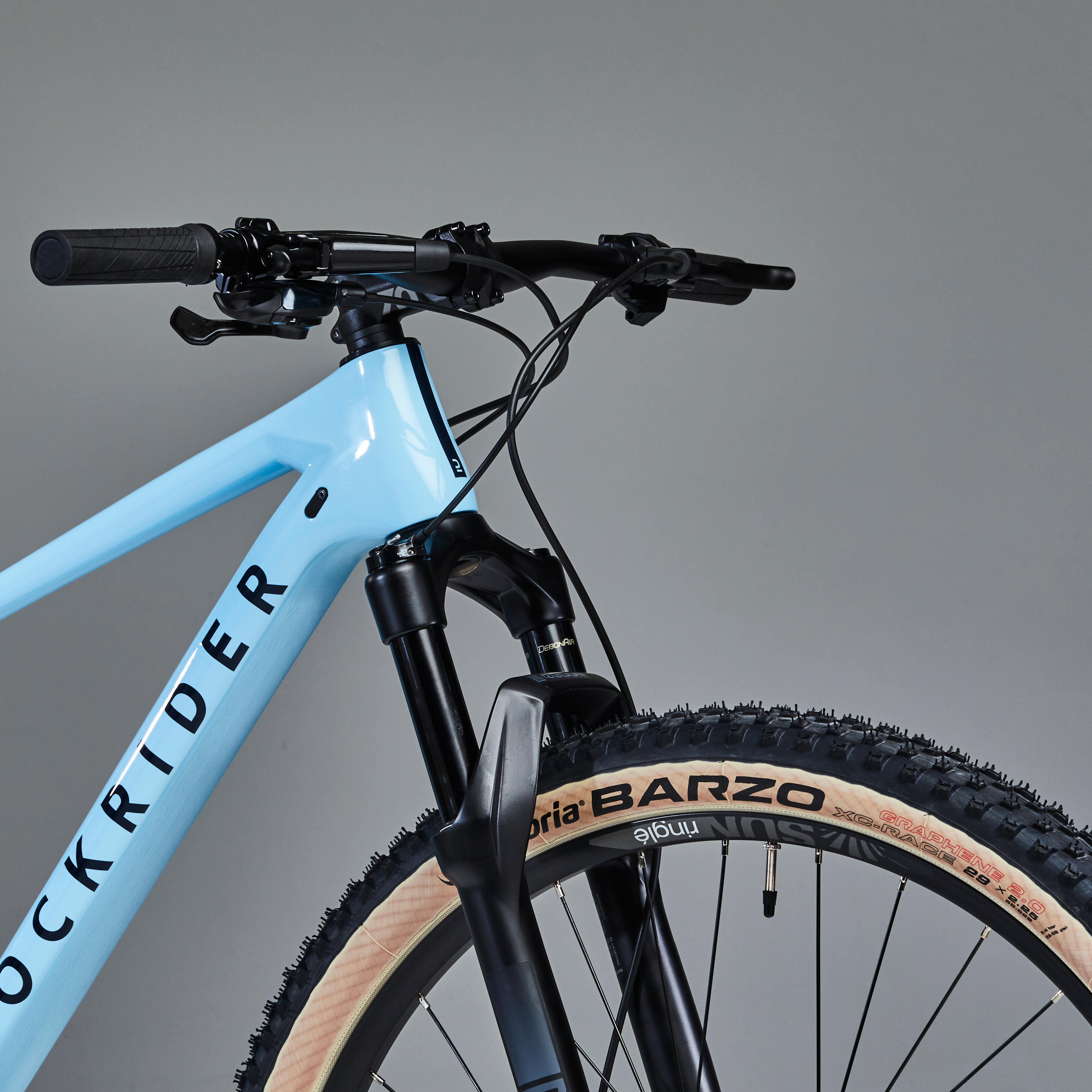

Suspension
GREEN MODEL (8731767)
RockShox REBA RL 100 mm fork
32 mm stanchions
Motion Control valve
Thru axle
BOOST format
Combolock II handlebar lockout (2 positions: open and closed)
Weight: 1633 g
BLUE MODEL (8615562)
RockShox Recon GOLD RL 100 mm fork
32 mm stanchions
Motion Control valve
Thru axle
BOOST format
Combolock II handlebar lockout (2 positions: open and closed)
Weight: 1850 g
Wheels
29" Sun Ringle Duroc 30 SRC Tubeless Ready wheels
Weight: 2070 g
HD freehub
Inner rim width: 30 mm
6-bolt rotors
32 round spokes
Sealed bearings
BOOST axles: 15 mm front and 12 mm rear
Fitted with rim tape: Tubeless Ready

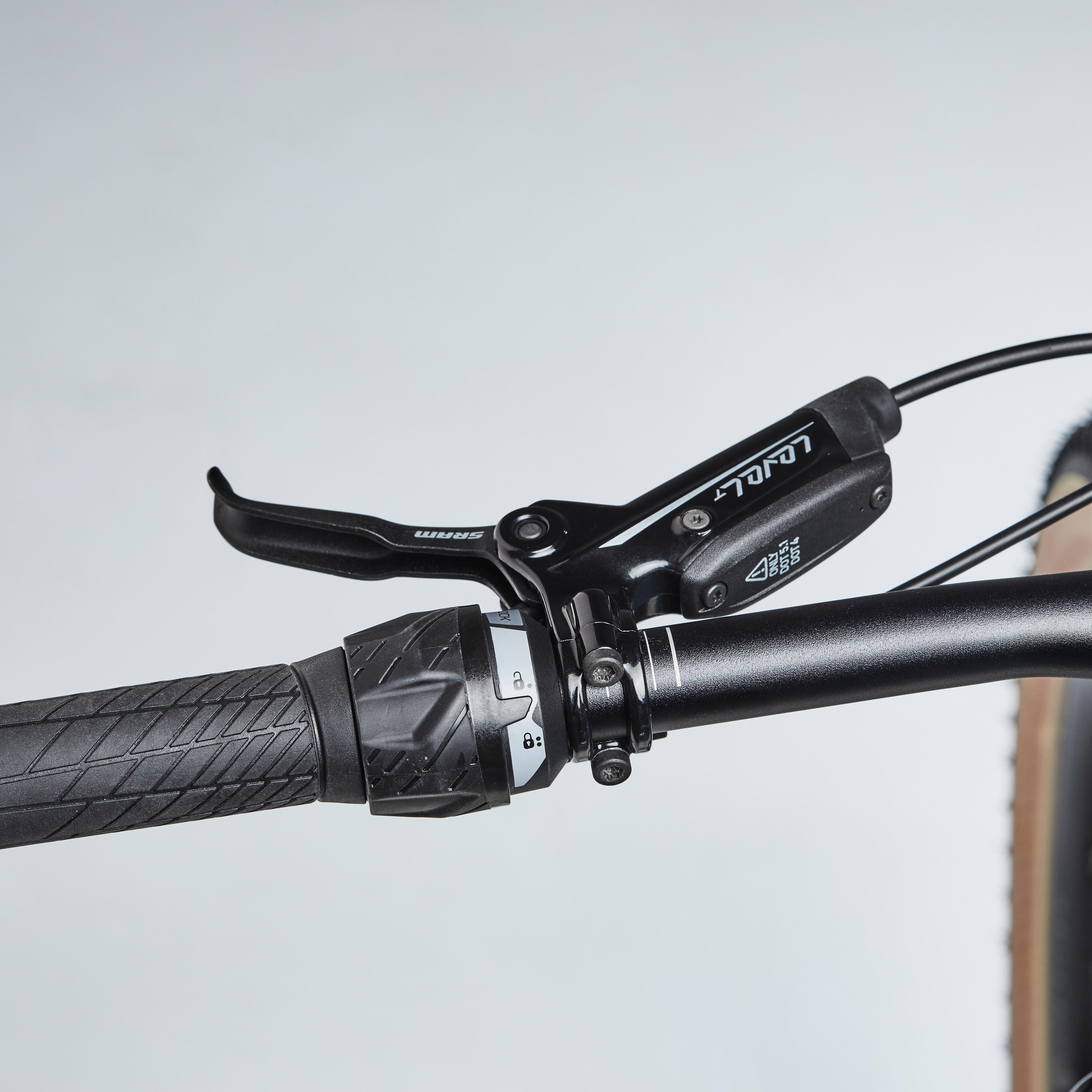

Brakes
Sram Level T
Sram G2 180 mm front rotor and 160 mm rear
6-bolt rotors
Riding position
Rockrider aluminium stem
-7° angle
60 mm in size S
70 mm in size M
80 mm in size L
90 mm in size XL
Rockrider aluminium flat handlebar
720 mm wide
6.5° angle
256 g
Grips: Rockrider 900 Lock On

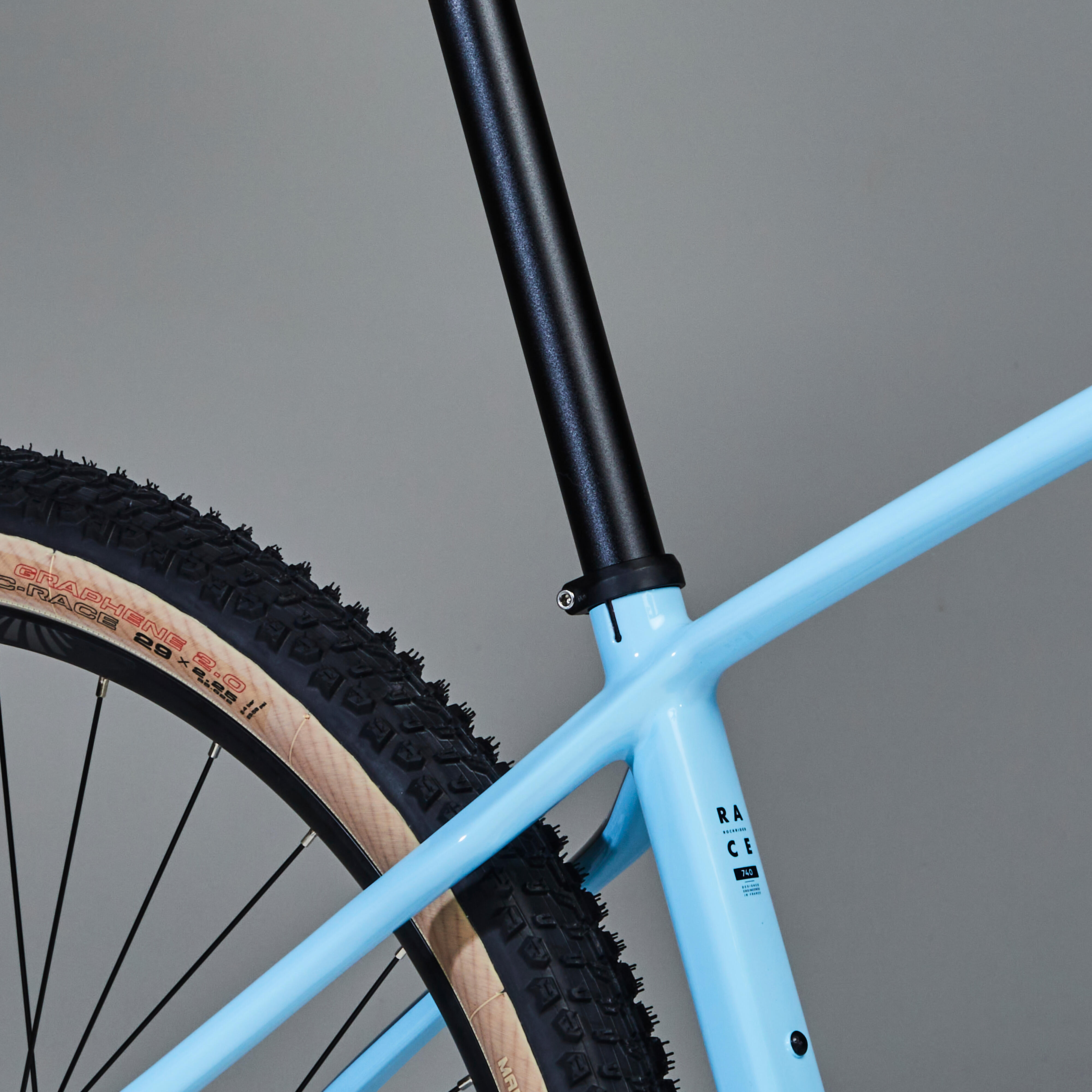

Saddle and seat post
Saddle Rockrider XC Ergofit
265 g
31.6 mm aluminium
Length: 350 mm (size M) and 400 mm (size L and XL)
285 g
Tyre
Front: Vittoria Barzo 29 x 2.25 Graphene
120 TPI carcass
Weight: 720 g
Rear
Vittoria Mezcal 29 x 2.25 Graphene
120 TPI carcass
Reinforced sidewalls
Weight: 760 g
Pedals
Rockrider 520 Grip resin flat pedals
Accessories
Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals
COMPOSITION
composition
Frame (for bike): 100.0% Carbon fibre (CF)
Tips for storage and maintenance
Storage tips
Your bike's equipment (drivetrain, brakes, etc.) will move around during the first few months of use. Please contact your nearest store's workshop to have your bike correctly adjusted.
Restrictions on use
Not suitable for a bike trailer or child seat.
TESTS AND WARRANTY
Test product
Ask your local Decathlon store about testing before purchase
Warranty
2 Years
Agree by
Our engineers always have real riders test all our products in real conditions. These tests round out our lab tests and let us validate all our products before they hit store shelves.
